Lite-On SOHW-812s - Page 11

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs, burned during the previous writing tests (jitter). The software used was UMDoctor Pro II and the reader is the Optorite DD0203 drive.

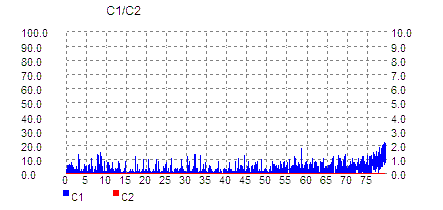

Taiyo Yuden 48x recorded at 16x

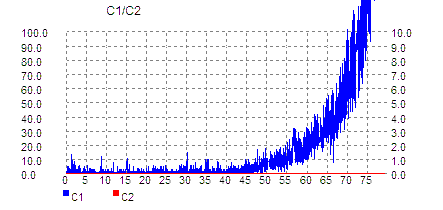

Taiyo Yuden 48x recorded at 24x

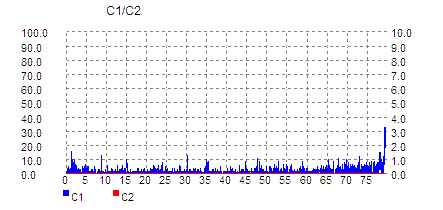

Taiyo Yuden 48x recorded at 32x

Taiyo Yuden 48x recorded at 40x

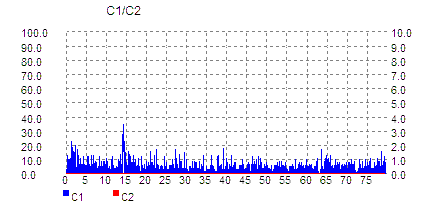

BenQ 48x recorded at 40x

HiSpace 48x recorded at 40x

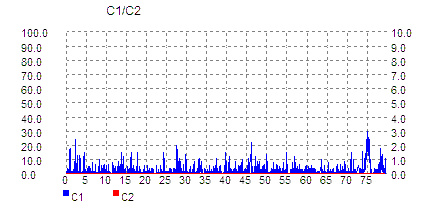

Intenso 52x recorded at 40x

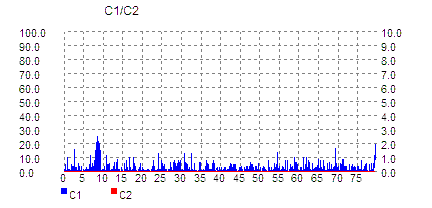

Mam 52x recorded at 40x

Philips 52x recorded at 40x

Disc	ID Code
Taiyo Yuden 48X	TaiyoYuden 97m24s01f
Benq 48X	Ricoh 97m22s67f
HiSpace 48x	Moulage Plastique de L'Ouest 97m25s07f
Intenso 52X	Moser Beer India. LTD. 97m17s06f
MAM 52X	Mitsui Chemicals 97m27s58f
Philips 52X	Ritek Co, 97m15s17f

The screenshots from Umdoctor show some minor spikes with all written media but at specifice areas. Although no C2 errors were reported, one of the worst written media was TY at 24x that returned C1 errors out of screenshot. Umdoctor confirmed the bad CD-R written quality of Hi-Space and Philips.
