Foxconn N570SM2AA Motherboard

Dec 11,2006 0

1. Introduction



Review Pages

1. Introduction
2. The Package
3. Bios
4. Installation
5. Everest Ultimate Edition 2006
6. PCMARK05 and 3DMARK05
7. Science Mark and Nero Digital
8. CineBench and SuperPi
9. F.E.A.R. and Prey
10. Splinter Cell Chaos Theory and Half Life
11. Overclocking
12. Conclusion



Foxconn is showing its devotion to the AM2 platform with the release of the N5570SM2A, a motherboard aimed at entry level users, supporting many interesting features, including SLI! With a price tag at around US$126, it looks like an attractive buy, especially considering that Foxconn's flagship for the AM2 platform, the C51XEM2AA, is at the much higher price of US$190.

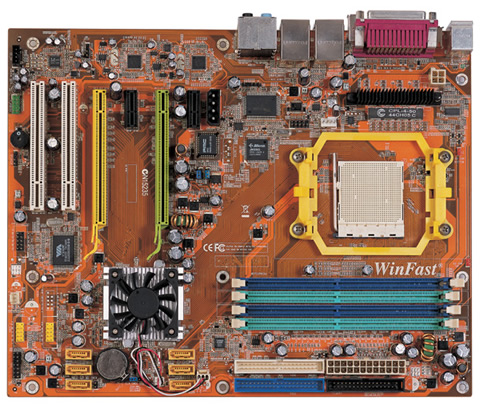

- Foxconn N570SM2AA-8EKRS2H

The Foxconn N570SM2AA-8EKRS2H is based on the nVidia 570SLI, which supports the AMD Sempron, Athlon 64, Athlon 64FX, Athlon 64X2 processors for Socket AM2. It features 2000 MT/s HyperTransport FSB and Dual channel DDR2 800/667 x2 DIMMs (Max 2GB).

- Main features

  • AMD Sempron™, Athlon™ 64, Athlon™ 64 x2, Athlon™ 64 FX processors for SocketAM2
  • 2000MT/s Hyper Transport™
  • Dual channel DDR2 800/667/533 x4 DIMMs, Max8GB
  • 2xPCIe x16,2xPCIe x1,2x PCI
  • IDE x2 + Serial ATAII x8 w/RAID 0, 1, 0+1, 5
  • 7.1channel, Realtek(HDA)
  • Dual GbE LAN( Marvell)
  • IEEE 1394a x2
  • 10 USB2.0 ports

- Full specifications

Processor: AMD Sempron™ , Athlon™ 64, Athlon™ 64x2, Athlon™ 64FX, Socket AM2
Chipset: NVIDIA nForce 570 SLI
Front Side Bus: 2000MT/s HyperTransport™
Memory: Dual channel DDR2 800 / 667 / 533 x 4 DIMMs, Max 8GB
VGA on Die: N/A
Expansion Slots: 2 x PCIe x16, 2 x PCIe x1, 2 x PCI
IDE: ATA133 x 2
Serial ATA(SATA)/RAID: Serial ATA II x 7 + E-Serial ATA II x 1 with RAID 0, 1, 0+1, 5
Audio: 7.1 channel, Realtek ALC882H (HDA)
LAN: Dual Marvell 88E1116 PHY
IEEE1394: 1394a x 2 (VT6308P)
Back Panel I/O Ports: 1x PS/2 keyboard
1 x PS/2 mouse
1 x 1394a
1 x S/PDIF Coax out
4 x USB 2.0
2 x RJ45
1 set 7.1 channel Audio jacks (6 jacks)
1 x Parallel
1 x eSerial ATA (reserve)
1 x S/PDIF Fibre out
Internal I/O Connectors: 3x USB 2.0 headers, support 6 ports
1 x WOM (reserve)
1 x COM2
1 x Speaker
1 x Front panel
1 x Buzzer
1 x 1394a
1 x CD IN
1 x IRDA
1 x RM
BIOS Features: LPC-4Mb, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Support CD: Drivers, Super Utilities, DirectX, Adobe Reader, Norton Internet Security, Manual & Raid Manual, Wordperfect
Standards/Manageability: USB 2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface
Special Features: Special cooling, CnQ, nView, nTune, HDA, SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed, SuperStep, SuperLogo, SuperUpdate,
Humanity Technology
Form Factor: ATX (12" x 9.6")
