BenQ DW1600A DL Recorder - Page 4

In the following tests we examined the DVD reading capabilities of the BenQ DW1600A DL drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed . The reference test media comes from ALMEDIO.

ABEX TDR-821

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

The DW1600A read the disc at 12X CAV. The scratched area did not affect the reading process. The performance reveals good error correction capabilities with scratched single layer DVD-ROM discs.

ABEX TDR-825

This is also a single sided, single layer DVD-ROM of a 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but defective areas of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints sized between 65 and 75 micrometers.

Again, the drive read the disc without any read errors. Reading speed was not reduced when the drive read the defective areas.

- Dual Layer media

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

There were no errors during the reading process. However, when reading over the scratched areas, we observe a dense patch as the drive made numerous speed changes to compensate for the defects.

ABEX TDR-845

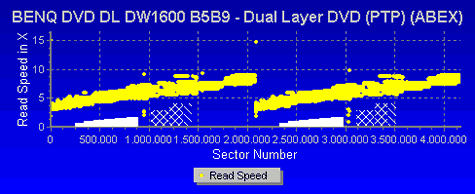

The disc is a single sided, dual layer DVD-ROM disc of a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes defective areas and fingerprints. The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micro meters.

The drive did not have any problem reading TDR-845 test disc.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based upon the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The discs check the layer switch operation from layer 0 to layer 1 and also include test pictures and test signals for DVD sound files. The current TDV-541 checks also the error correcting capabilities of the drive and includes scratches from 0.4 to 3.0 mm.

Reading process started at 3.35X and smoothly increased while reading the first layer, reaching 8.07X when reading the outer part of the disc.The drive read both layers without reporting any read errors, and reached an average speed of 6.05X.

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It has also 65 - 75 micro meter fingerprints.

The DW1600A showed exact same behavior here as it did with TDV-541 test disc. Even the average speed and the starting speed were the same as before. It managed to read the disc without any errors. Very good performance from the BenQ drive.
