As we previously said, the EAX 1600XT is silent due to the passive cooling system, which carries the heat away from the GPU, through the heat pipes to the aluminium fin arrangement, located on the rear of the card.

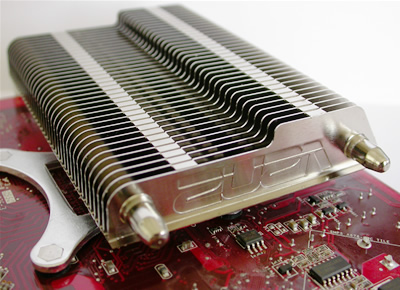

A closer look at the aluminum fin arrangement.

Closer look at the heat pipes.

The Asus EAX1600XT SILENT is equipped with two monitor outputs, a DVI and a VGA, as well as a VID Output to connect with the VIVO cable.

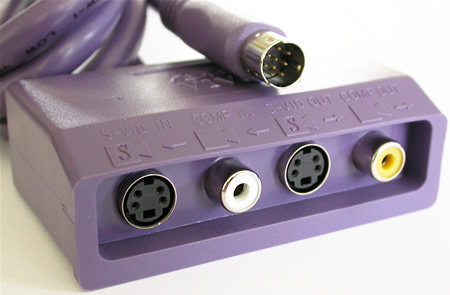

On the Vivo cable, you will find the S-Video in/out and the Composite in/out connections.

OK, let's move on to the tests and testbed system.
