ASUS A8N-SLI Deluxe - Page 9
CodeCreatures is a synthetic 3D benchmark that is a good reference for VGA performance comparison. This is a high-end 3D benchmark that also requires DirectX 8 hardware, making it a good tool for measuring the potential of DirectX 8 game performance.
The Codecreatures benchmark is written with Microsoft's DirectX 8.1 API and incorporates the use of Vertex and PixelShaders, popular on next generation 3D accelerators.

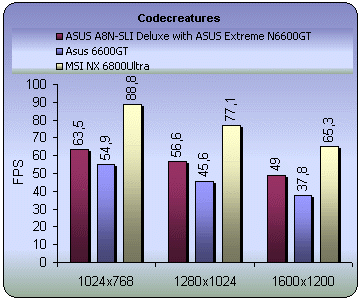

The benchmark plays a photo-realistic nature scene and calculates the performance of the graphics adapter by measuring the fps that it can display at 1024x768, 1280x1024 and 1600x1200 pixels resolutions.
In this 3D benchmark, the combined power of two ASUS Extreme N6600GT graphics cards is not enough to outperform the processing power of one 6800Ultra GPU. It should be noted though, that the 6800Ultra GPU reported a 20fps drop between 1024x768 to 1600x1200, while the SLI enabled cards dropped only by 13fps.

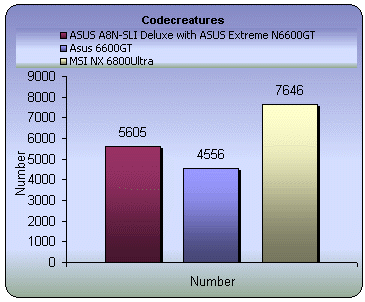

The codecreatures number is the resulting score of the total benchmarking process and is basically the geometric mean of the three framerates multiplied by 100.
