Akasa Nero (AK-967) CPU Cooler
3. Test methodology
For our tests with the LGA 1366 CPU coolers we used an open air test bed with the following configuration:
- CPU: Intel Core7-920 Retail
- Case: open air test bed
- Motherboard: Asus P6T Deluxe Bios 1003 & Foxconn Renaissance Bios P07
- Memory: 3x1GB Crucial PC3-1066
- PSU: OCZ 720W
- HDD: WD 80JB
- Operating system Windows XP with all the latest updates installed
- Software: OCCT v2.0.1 & CoreTemp 0.99.3
- Thermal Paste: Tuniq TX-2
- Idle time: ~30min
- Load time: ~30min
- RPM speed controllable via SmartFan BIOS or via external hardware controller
In order to produce the highest possible temperature inside the PC case, we used OCCT v2.0.1 software with a custom 30mins (mixed) operation.
We left both cores running at full load for ~30 minutes. All temperatures were logged using the CoreTemp 0.99.3 and the software itself.
We followed two overclocking scenarios:

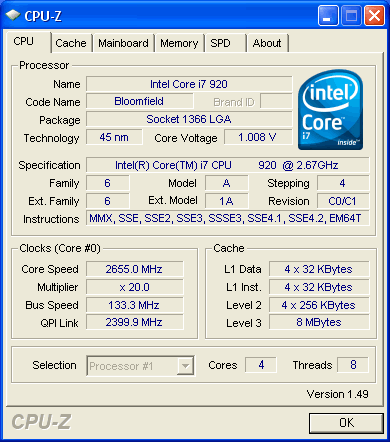

- Intel Core i7-920 @ 2.66GHz
- Vcore: 1.1000V
- Other BIOS values: Auto

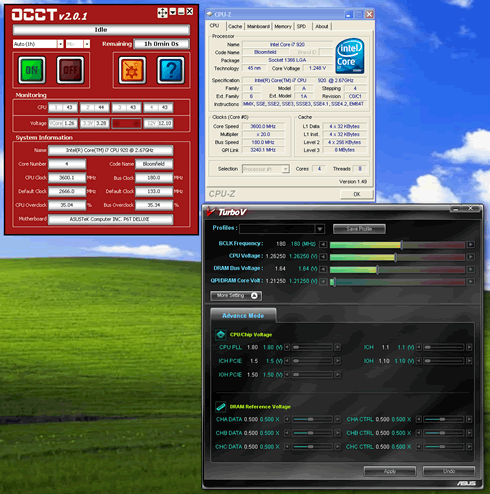

- Intel Core i7-920 @ 3.60GHz
- Vcore: 1.26250V
- DDR3 Voltage: 1.64V
- Other BIOS values: Auto
We also measured the produced noise from all the coolers using the Precision Gold N09AQ Environment Meter. All measurements were taken at a distance of 30cm from the cpu cooler running at full speed. For all the coolers we used the same thermal compound from Tuniq, the TX-2. All in all we tried to have the exactly same environment conditions in all the tested coolers.
