Intel Graphics Media Accelerator 3150 integrated graphics on the ZOTAC NM10 series deliver compatibility with Microsoft DirectX 9 with Shader Model 3.0 and OpenGL 1.5. Intel Clear Video technology enhances standard-definition content while HDMI and VGA outputs enable connectivity with the latest LCD monitors and televisions.
Exclusive to the ZOTAC NM10 series platform is a HDMI output capable of resolutions up to 1366x768 (720p), a feature no other Intel Atom with NM10 Express chipset platform will deliver. A VGA output compliments the HDMI output, for those still using analog display connections.

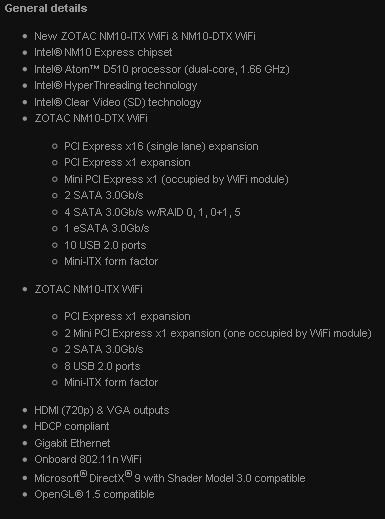

Expansion capabilities are plentiful on the ZOTAC NM10 series platforms with the mini-DTX form factor ZOTAC NM10-DTX WiFi packing PCI Express x16 (single lane) and PCI Express x1 slots, 2 SATA 3.0Gb/s, ZOTAC exclusive 4 SATA 3.0Gb/s with RAID 0, 1, 0+1 & 5, 1 eSATA 3.0Gb/s, 10 USB 2.0 ports, 5.1-channel high-definition audio, Gigabit Ethernet and 802.11n WiFi.
The ZOTAC NM10-ITX WiFi delivers the same performance and energy-efficiency in a smaller mini-ITX form factor with one PCI Express x1 slot, two SATA 3.0Gb/s ports, 8 USB 2.0 ports, 5.1-channel high-definition audio, Gigabit Ethernet and 802.11n WiFi.
