Traxdata Media Tests - Page 8

Asus DRW-1604P (v1.10)

Drive	ASUS DRW-1604P
Media	DVD	CD
Transfer Rate Read	16X CAV SL DVD-ROM 12X CAV DL DVD-ROM	40X CD-ROM CAV
	12X CAV DVD±R
	8X CAV DVD±RW	32X CD-RW CAV
	2X CLV DVD-RAM
	8X CAV DVD+R9
Transfer Rate Write	16X DVD±R Z-CLV	32X CD-R Z-CLV
	4X DVD±RW CLV	24X CD-RW Z-CLV
	4 DVD+R9 CLV
Access Time	145ms	125ms
Mechanism	motorized Tray load mechanism for horizonal and vertical use
Interface	IDE / ATAPI
Burst Transfer Rate	PIO mode 4 / Ultra DMA 33
Cashe Memory	2MB
Supported Media formats	DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, DVD-RAM, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Audio	headphone jack and volume control at front plus digital-out and line-out at the back (MPC compatible)
Writing methods	DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Weight	1.1kgr
Dimensions	148(W) × 42.3(H) × 198(D) mm

- 2.4X DVD+R DL@ 2.4

- 16X DVD+R@ 4X

- 8X DVD+R@ 12X

- 8X DVD-R@ 12X

- 4X DVD+RW@ 4X

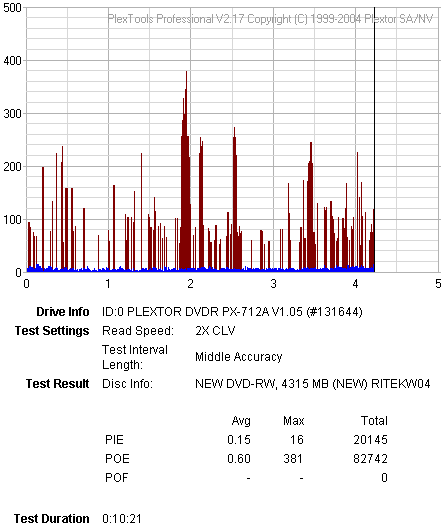

- 4X DVD-RW@ 4X

- Summary

Media	Code ID	Speed	Time
DVD+R DL	RITEK D01	2.4X	38:05
DVD+R 16X	RITEK R04	4X	14:52
DVD+R 8X	RITEK R03	12X	7:01
DVD-R 8X	RITEK G05	12X	6:48
DVD+RW 4X	RICOHJPNW11	4X	15:37
DVD-RW 4X	RITEK W04	4X	14:55

Only RW media provided excellent results. DL media produced an error just before reaching the end of the first layer, while DVD±R media produced satisfactory results.
