Thermaltake is one of the better known manufacturers of PC cooling solutions and for PC case moding, among other things. Even though the company was founded in the late 90's, 1999 to be specific, it has managed to become one of the top brands in cooling solutions with a range of products that provide cures for "thermal" problems.

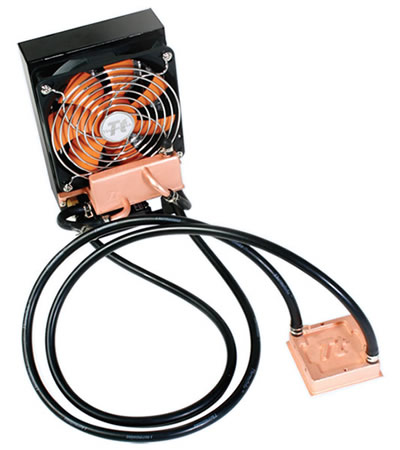

On this occasion, we received a rather interesting cooling system from Thermaltake, the "All in one CPU Liquid Cooling - Silent Water". From the name, you can discern that it is a water cooled device. It is a high performance radiator with a 120mm fan, a copper base and water tank with a pre-filled coolant. All this justifies the "All in one" title.
- Applicable to Intel P4 LGA775/478 and AMD K8/K7
- 120mm Radiator : High performance radiator with a 120mm silent VR fan (1300 ~ 2400rpm)
- Brazing Copper Water Block for maximum heat conductivity
- Brazing Copper Water Tank enhances the thermal efficiency
- Silent and powerful mini 12V pump with superb reliability
- Using industrial-grade rubber tube with Epoxy to minimize liquid evaporation
- Coolant pre-filled
120mm Radiator with a VR fan 1300 to 2400RPM
Brazing Copper Water Tank
Powerful Mini 12V Pump
Brazing Copper CPU Water Block
|5.||Fan Speed Controller|
|6.||Special rubber tube with EPOXY (ID 5.0mm, OD 8.5mm)|
|Water Block||Brazing Copper water block
Application for Intel P4 LGA775, 478 and AMD K8, K7
User friendly installation
65 (L) x 38 (W) x 25 (H) mm
Pump speed : 72 L/Hr, 3400 rpm
Life expectancy : 40,000 hrs
|Coolant||Operating temp. range : -10 ~ 100oC
|Tank||Brazing Copper water tank|
|Radiator||160.8 (L) x 120 (W) x 35 (H) mm
Aluminum fin with copper tube
|Fan||120 (L) x 120 (W) x 25 (H) mm
Fan speed : 1300~2400 rpm
Noise level : 17~21dBA
Fan speed controller included
As Thermaltake declares, the "All in one CPU Liquid Cooling - Silent Water" can fit in many platforms.
|Intel P4 socket 775|
|Intel P4 socket 478|
|AMD socket K8|
|AMD socket K7|
The retail package also includes an installation guide which will take you through the steps for installing the "All in one CPU Liquid Cooling - Silent Water".
For detailed information regarding the installation procedure, move on to the next page...
