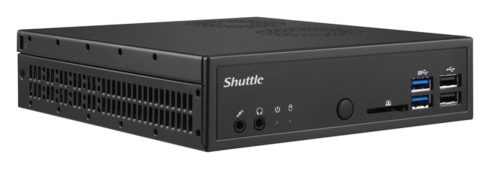

Shuttle has made available the new DH170 Skylake-compatible Mini-PCs, which features a 43 mm flat steel case for maximum protection from mechanical stresses and high ambient temperatures. The DH170 barebone, which is based on the Intel H170 chipset, supports all sixth-generation Intel Celeron, Pentium and Core processors for socket LGA1151 (up to 65 Watt of TDP). It supports 16 GB DDR3L RAM in dual-channel mode and a PCIe M.2-SSD. The machine measures a mere 19 x 16.5 x 4.3 cm (DWH) and has a footprint not much bigger than half a sheet of A4 paper.
In addition, the DH170 can accommodate a 2.5" drive with SATA 6 Gbit/s and has a Mini-PCI-Express expansion slot that can be fitted with e.g. a WLAN module. Relevant openings for WLAN antennas are already provided. Outside connections comprise of a card reader, 2x Intel Gigabit Ethernet, 4x USB 3.0, 4x USB 2.0, 2x DisplayPort, 1x HDMI, 2x RS-232 and, of course, audio.
The DH170 also supports parallel operation of high-resolution 4K displays at 60 Hz (DP) and 30 Hz (HDMI). Of course, for this scenario Core i3 processors or higher are recommendable.
At the back of the machine is a four-pin connector for remote power-on (e.g. in the case of fixed installation in an awkward position). If required, a jumper on the motherboard can put the machine in always-on mode so that it automatically starts up as soon as the operating voltage is applied.
The DH170 can also be operated in various positions, e.g. sitting flat on a desk or installed on suitable surfaces or monitors with the included VESA mount.
Optional accessories consist of a WLAN kit (WLN-S) and a VGA adapter (PVG01).
The recommended retail price for the Shuttle DH170 Barebone is EUR 244.00 (ex VAT).
Nettop PC with black chassis made of metal
Dimensions: 190 x 165 x 43 mm (LWH) = 1.35 litre
Weight: 1.3 kg net and 2.1 kg gross
Two holes for Kensington Locks and numerous
threaded holes (M3) at both sides of the chassis
- Storage bay
1x 6.35 cm / 2.5" storage bay supports one hard disk or SSD drive
Device height: 12.5 mm (max.)
- Operation System
This system comes without operating system.
It is compatible with Windows 10, 8.1, 7, Linux - 64 bit
- Mainboard / Chipset / BIOS
Chipset: Intel H170 Chipset
(Intel DH82H170 PCH, code name "Sunrise Point")
Platform Controller Hub (PCH) as Single-Chip-Solution
AMI BIOS in 8 Mbit EEPROM with SPI interface
All capacitors are high quality solid capacitors
Supports hardware monitoring and watch dog functionality
Supports Unified Extensible Firmware Interface (UEFI)
Supports power on after power failure
- Power Adapter
External 90 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz
Output: 19 V DC, 4.74 A, max. 90 W
DC Connector: 5.5/2.5mm (outer/inner diameter)
- Processor support
Socket LGA 1151 (H4) supports the sixth generation of
Intel Core i7 / i5 / i3, Pentium and Celeron processors
Maximum supported processor power consumption (TDP) = 65W
Codename "Skylake", 14nm process technology, up to 8 MB of L3 cache
Not compatible with older Socket LGA 1150 processors.
Does not support the unlock-function of Intel K-Series processors.
The processor integrates PCI-Express, memory controller
and the graphics engine on the same die (performance features
depending on processor type)
Please refer to the support list for detailed processor support information at global.shuttle.com.
- Processor cooling
Heat-pipe processor cooling with two 60 mm fans on the upper side of the chassis
- Memory support
2x SO-DIMM slots with 204 pins
Supports DDR3L-1333/1600 (PC3-10600/12800) SDRAM at 1.35V
Supports Dual Channel mode
Supports max. 8 GB per DIMM, maximum total size of 16 GB
Supports two unbuffered DIMM modules (no ECC)
Notice: This mainboard does only support 1.35V DDR3L memory modules.
Note: DDR3L has a lower operation voltage compared to DDR3
- Integrated Graphics
The features of the integrated graphics function
depend on the processor type used.
Three digital video outputs: 2x DisplayPort 1.2 and 1x HDMI 1.4
- supports three independent Full HD displays simultaneously
- supports Full HD resolution at 1920x1200 (1080p/60Hz)
- supports 4K UHD resolution at 3840 x 2160 (2160p/60Hz on DP, 30Hz on HDMI)
- supports Blu-ray (BD) playback with HDCP
- supports HD video plus multi-channel digital audio via a single cable.
Optional analog D-Sub/VGA video output
- M.2 Slot
The M.2 2260 BM slot provides the following interfaces:
- PCI-Express v3.0 X4
- SATA v3.0 (6 Gbps)
- USB 2.0
It supports M.2 cards with a width of 22 mm
and a length of 30, 42 or 60 mm (type 2230, 2242, 2260).
Supports M.2 SATA SSDs, M.2 PCIe SSDs and other M.2 cards.
- Mini PCIe Slot
Mini-PCIe Half-Size slot
with PCIe 2.0 and USB 2.0 interface
supports one optional Wireless Network (WLAN) card
Audio Realtek ALC 662 5.1 channel High-Definition Audio
Two analog audio connectors (3.5mm) at the front panel:
1) 2-channel line out (head-phones)
2) microphone input
Digital multi-channel audio output: by HDMI and DisplayPort
- Dual Gigabit LAN Controller
Dual network with two RJ45 ports
Used network chips:
1) Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
2) Intel i219LM PHY connected to the MAC of the processor
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Supports Teaming mode
- Drive connectors
1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
With Serial-ATA power connector (onboard)
- Card Reader
Integrated card reader
Supports SD, SDHC and SDXC memory flash cards
Supports boot up from SD card
- Front Panel connectors
Audio Line-out (headphone)
2x USB 3.0
2x USB 2.0
SD card reader
Power LED (blue)
HDD LED (yellow)
- Back Panel connectors
1x HDMI connector
2x DisplayPort connector (DP)
Optional 1x D-Sub VGA connector (Accessory PVG0)
2x USB 3.0
2x USB 2.0
2x Gigabit LAN (RJ45)
2x RS232 serial port, 9-pin D-Sub (5/12V, 1x RS422/RS485)
DC-input connector for external power adapter
4-pin connector (2.54 mm pitch) supports
- external power on button
- Clear CMOS function
- +5V DC voltage for external components
2x Perforation for optional Wireless LAN antennas
2x hole for Kensington Locks
- Other onboard connectors
1x jumper JP2 - power on after power fail (hardware solution)
1x analog VGA graphics output CN6 (2x1-pin, 1mm pitch)
2x USB 2.0 (2x5-pin)
2x serial interface (COM) occupied for back panel connectors
1x fan connector (4 pins) occupied by the cooling system
1x connector for CMOS battery (occupied)
1x audio connector (line-out/microphone, 2x7-pin)
