Samsung SH-W162L

Jan 9,2006 0

19. LightScribe Feature



Review Pages

1. Introduction
2. Reading Tests
3. CD Error Correction
4. DVD Error Correction
5. Protected Discs
6. CD Recording Tests
7. CD Writing Quality - Plextools
8. CD Writing Quality - Clover System
9. DVD Writing Tests
10. DVD Writing Quality - Page 1
11. DVD Writing Quality - Page 2
12. DVD Writing Quality - Page 3
13. DVD Writing Quality - Page 4
14. DVD Writing Quality - Page 5
15. DVD Writing Quality - Almedio
16. DVDR DL - Page 1
17. DVDR DL - Page 2
18. Booktype Setting
19. LightScribe Feature
20. Conclusion



As mentioned earlier in this review, the Samsung SH-W162L, among other things, also features the LightScribe technology. We provide a brief run down of the basics of LightScribe before moving on to the drive's capabilities and performance regarding this feature.

-What is LightScribe?

With a view to replacing the "old" fashioned CD markers, the LightScribe technology is an integrated system that with the combination of three key elements, manages to produce "precise" as it is said, CD and DVD labels. These three elements are the Lightscribe enabled drive, the specially dye coated discs, and the specific supported software. Note, that the use of specific coated media is required and cannot be done with any ordinary printable media.

-How it works?

In layman's terms, the LS enabled drive, uses a laser that emits light energy onto the thin dye coating of the disc (the label side of the media) chemically changing it so that visible points appear on the disc. As the disc spins inside the drive, the light beam marks even more points on the dye, following the pattern given to the drives mechanism by the LS software mentioned previously. The result is a a precision image on the label side of the disc.

- Samsung SH-W162L LightScribe Drive

The process is quite easy, accomplished with the aid of a wizard that is integrated into the latest Nero releases, as well as in the bundled NERO OEM suite included in the retail package.

As soon as you press the LightScribe button, located on the top right of the Nero Burning ROM main screen, the wizard prompts you to select the image you want to "print" onto the disc media. You can scale the image, use fonts, and generally use common tools found with all CD labeling software. You then choose the preferred print quality (print time is dependent on the quality level, which ranges from draft to best) and you are ready to print. The package also contains the SureThing labeling software which will work flawlessly with the drive and labeling process.

Note that in order to print on the LS enabled media, you must put it in the tray upside down. This may seem a bit awkward, but that's the way it must be done.

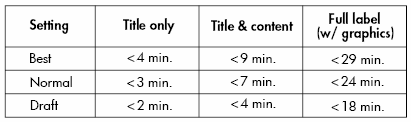

Last step, we start printing the media. The printing process depends on the print quality selected and differs from drive to drive.

Our tests confirmed the quality - time ratio given by the manufacturer. For a best quality print, the time required was approx. 28mins.

The results of this test were quite good...

That's about it for the LightScribe capabilities of the SH-W162L. Now let's move on to the last page and the conclusion of the Samsung review.
