Ricoh MP5308D DVD±R/RW Recorder - Page 5

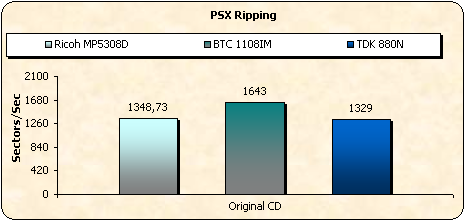

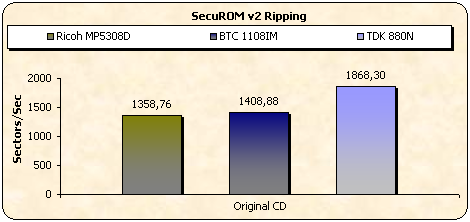

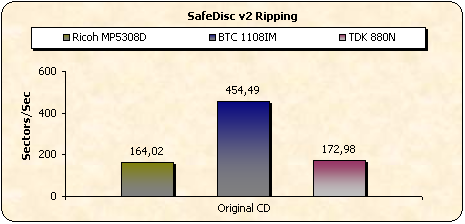

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

The Ricoh drive had satisfactory performance.

The Ricoh MP5308D supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 3 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

• Fifa 2004 - Safe Disc v3.1x
• The Sims Superstar - Safe Disc v2.9x
• The Sims Unleashed - Safe Disc v2.8x
• Serious Sam Second Encounter - Safe Disc v2.51.021
• Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

The drive's Safedisc2 backup capabilities reached only up to v2.51.x. The drive doesn`t produce working backups with the newest v2.8x, v2.9x and v3.1x builds and produced partially working backups with EFM off and SafeDisc v2.51.051 but full support with SafeDisc v2.51.020 and EFM off.
