PIONEER DVR-S706 DVD±R/RW recorder - Page 10

Writing Quality Tests - 3T Jitter Tests

With Nero audio compilation we burned various media and tested for jitter. The recording speed was the maximum allowable in all cases. The following graphs indicate the 3T Pit & Land Jitter results.

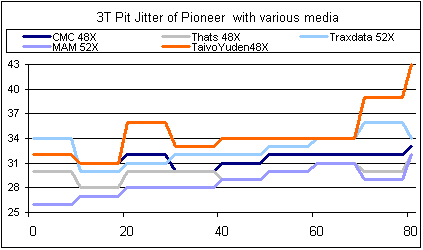

- 3T Pit results

According to results from jitter measurements, the Pioneer drive performed well with some of the media brands we used. MAM and That`s proved to be very good combinations with the Pioneer recorder but Taiyo Yuden returned high jitter results.

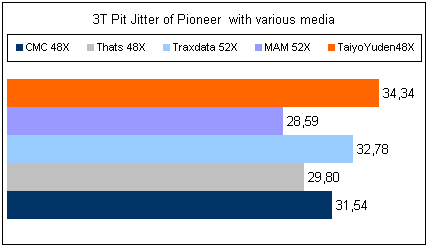

The average 3T Jitter values for all manufacturers discs are illustrated in the following graph.

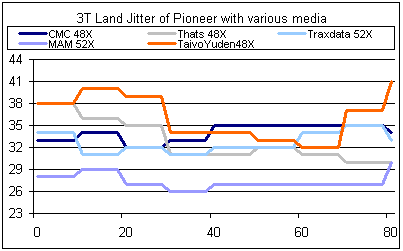

- 3T Land results

The land jitter values were almost at the same levels as the 3T pit jitter where MAM media produced the best results.

Recording Speed	Average 3T Pit Jitter (ns)	Average 3T Land Jitter (ns)	> 35ns	Max 3T jitter values (ns)
CMC 48x	31,54	34	No	33 Pit, 35 Land
That`s 48x	29,80	32,93	No	32 Pit, 38 Land
Traxdata 52x	32,78	32,63	No	36 Pit, 35 Land
Mam 52x	28,59	27,32	No	32 Pit, 30 Land
Taiyo Yuden 48x	34,34	36	Yes	43 Pit, 41 Land
