Pioneer DVR-A06 DVD±RW recorder - Page 12

KProbe PI/PO measurements

In the following screenshots you can see the PI/PO scans for various 4x DVD-R/+R and DVD-RW/+RW media, recorded with Pioneer DVR-A06 at the maximum speed.

The software we used for the measurements is the KProbe, and the reader is LiteOn XJ-HD-165H. The specific methodology is very depended on the drive we use as a reader. The reliability of the PI/PO provided output is also not technically confirmed. As a result, we cannot safely come up with absolute results, but we are allowed to compare the behavior of the drive with various DVD recordable/rewritable media, since this seems currently our only feasible approach.

The recordable discs we used come from Hitachi-Maxell, Pioneer, Philips, TDK, Verbatim and Ritek. More information about each disc type is available at the bottom of the page.

• Maxel 4x DVD+R

• Maxell 4x DVD-R

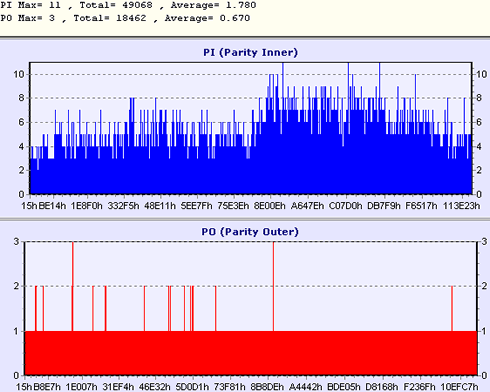

• Pioneer 4x DVD-R

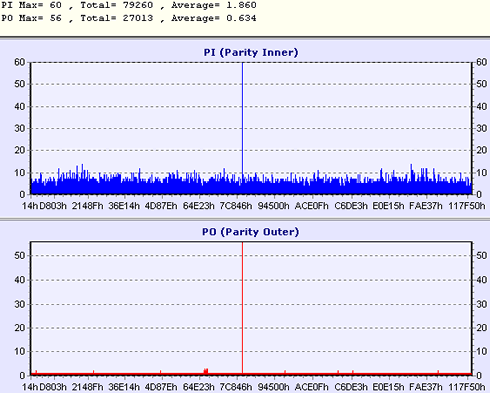

• Ritek 4x DVD-R

• TDK 4x DVD+R

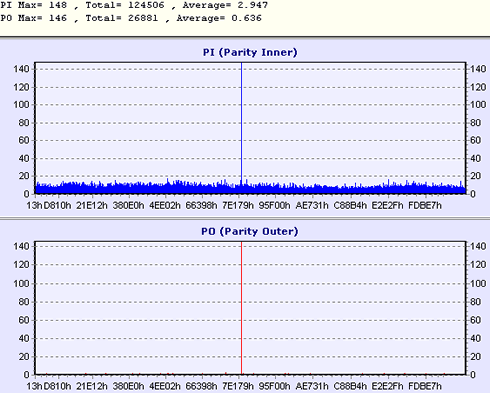

• TDK 4x DVD-R

• Verbatim 4x DVD+R

• Philips 2.4x DVD+R

• Maxell 2x DVD-RW

• Verbatim 2.4x DVD+RW

Below you can see the actual codes of all the media we used for the graphs reported above.
