Partial-CAV versus Zone-CLV - Page 5

Ricoh 74min 24x Test Results - LiteOn LTR-24102B

We used the latest 20x and 24x recorders from various manufacturers in order to see how they perform with specific media brands under their maximum speeds. All CDs burned with Nero 5.5.3.5 and were Audio CDs with 74:51:27 lengh size.

- Test Results

In order to simplify the results we have gathered them in the following table:

20x writing speed
Model	C1		Average Burning Time (secs)
Model	Max	Average	Average Burning Time (secs)
Acer CRW2010	47	8,2	314
LiteOn LTR-24102B	38	2,8	280
Plextor PX-W2410A	20	1,9	267
Ricoh MP7200 (JustSpeed On)	39	0,7	277
Ricoh MP7200 (JustSpeed Off)	18	0,5	272
Ricoh MP9200 (JustSpeed on)	18	1,2	290
Ricoh MP9200 (JustSpeed off)	19	2,6	272
Yamaha 2200E (OWC on)	29	0,6	420 (with 1.0d firmware time is lower)
Yamaha 2200E (OWC off)	30	1,48	282

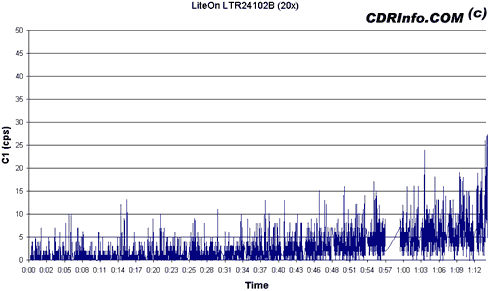

As the C1/Time graph shows, the LiteOn LTR-24102B produces a typical C1 error-rate image. The drive starts with a low C1 error rate in the inner part of the disk and as time passes, errors are increased as well. This behavior further deteriorates when the head approaches the exterior part of the disk.

At the 24x writing speed, the LiteOn exhibits a similar image as in the case of 20x recording. This drive produces slightly higher C1 errors during the speed change points located the first at 6 minutes of 1x playback (16x to 20x speed change) and at 14minutes (20x to 24x shift). In the end, C1 errors are going again high.
