HIS X700 Pro IceQ TURBO
2. A closer look
02 - A closer look
| Main Features | |
| GPU | ATi X700 - R410 |
| Memory Type | 256MB 128-bit GDDR3 |
| Memory Speed | 432MHz |
| Core Speed | 420MHz |
| Memory Bandwidth | 13.8 GB/sec |
| Pixel Pipelines | 8 |
| Vertex Pipelines | 6 |
| DX Support | 9.0 |
| OpenGL Support | 1.5 |
| Output | VGA/ DVI-I / D-Sub |
| Bus | PCI Express 16x (requires 2 expansion slots to fit) |
| Processing technology | 0.11 micron |
Just like the X300 series where ATi incorporated a narrower process technology, the X700 GPUs are also built using the 0.11 micron process. That theoretically reduces thermal aggregation throughout the core and leaves more room for overclocking.
 |

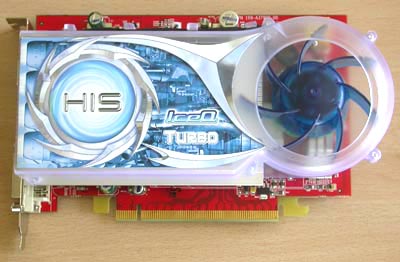

| The artic cooling solution is larger than the card itself! |
The X700 we received from HIS, features 256MB of 2.0ns GDDR3 covered by small heatsinks to prevent overheating, as the fan only covers the ATi core.
 |

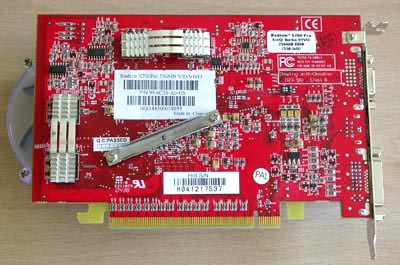

| A view at the back side of the card |
The GPU fansink is very impressive but a little bit over the top as it is too huge and overhangs onto a second PCI slot when fitted on the motherboard.
The fan is made from UV sensitive material which offers a fascinating glow when the card is exposed to a UV light source.
 |

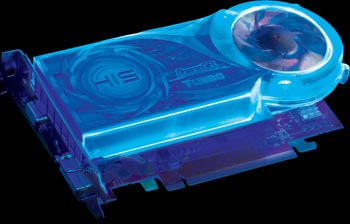

| This is how the card will look under a UV light. |
