3. Meet the HIS Radeon HD 7950 IceQ X2
Review Pages
2. Meet the HIS Radeon HD 7850 4GB iPower IceQ Turbo
3. Meet the HIS Radeon HD 7950 IceQ X2
4. Test setup
5. DirectX 11: 3D Mark 11, 3DMark 2013
6. DirectX 11: Crysis 3, Hitman Absolution
7. DirectX 11: Far Cry 3, Final Fantasy
8. DirectX 11: Alien Vs Predator, Sleeping Dogs
9. DirectX 11: Tomb Rider, Sniper Elite V2
10. Overclocking
11. Final words
| Model Name | HIS 7950 IceQ X² Boost Clock 3GB GDDR5 PCI-E DVI/HDMI/2xMini DP |
| Chipset | Radeon HD 7950 PCIe Series |
| ASIC | RadeonTM HD 7950 GPU |
| Manu. Process (Micron) | 28nm |
| Memory Size (MB) | 3072 |
| Memory Type | GDDR5 |
| Engine CLK (MHz) | 850MHz (Boost Clock 950MHz) |
| Memory CLK (Gbps) | 5Gbps |
| Memory Interface (bit) | 384bit |
| Power Supply Requirement | 500 Watt or greater power |
| Max. Resolution | 4096x2160 per display (DisplayPort 1.2) 2560x1600 per display (Dual-link DVI) 2048x1536 per display (VGA) |
| Bus Interface | PCI Express 3.0 x16 |
| Mini Display Port | Yes |
| HDMI | Yes |
| DVI | Dual-link DVI-I |
| VGA | No |
Below you see the HIS Radeon HD 7950 IceQ X² Boost Clock edition, a graphics card with a nice 3GB graphics memory.
Besides the graphics card, the bundle includes a manual a demo and driver CD, a CrossFireX bridge, power converters and monitor connector converters.
The card is long, due to the extended PCB but mostly due to the cooler. As a result you will need 31CM of free space, that's 12.2 Inches.
This card features the big IceQ X² cooler, which has been designed to keep the card at excellent temperatures versus low noise levels. The card is below 28dB when watching movies or surfing on the web.
The large 2x 89mm dual axial fans draws massive amount of cool air to cool the GPU directly. The Q&C fan blade increases air velocity make cooling more efficient. The fan has a life span of up to 50,000 hours.

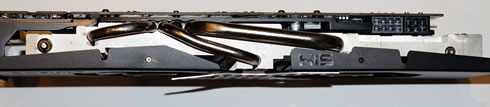

3x 6mm and 2x 8mm wide heatpipes optimize cooling performance by removing heat from the core area. A 40x47.5mm copper heatsink provides a large area to dissipate heat. The card also carries memory and mosfet heat sinks to provide extra heat dissipation from these areas.
The card also features fan control and monitoring, you are able to read fan speed & Asic temperature from iTurbo or other softwares.
Two Crossfire connectors are available, meaning that up-to 4-way Crossfire would be your maximum. This 7950 utilizes one 6-pin and a 8-pin power connector, a 550W PSU will be sufficient.

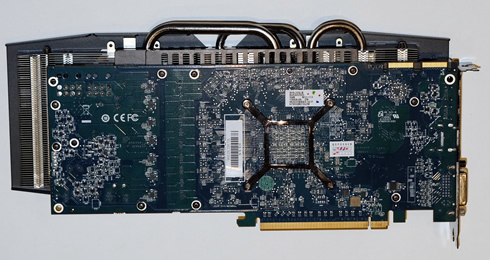

Finally a metal rib provides extra strength to the PCBs to avoid warpage, making the cards extra stable and durable.
| HIS 7950 IceQ X² Boost Clock | AMD 7950 Ref Board | |
| Power Input | 6+8 | 6+6 |
| PWM Phase | 4+1+1 | 2+1+1 |

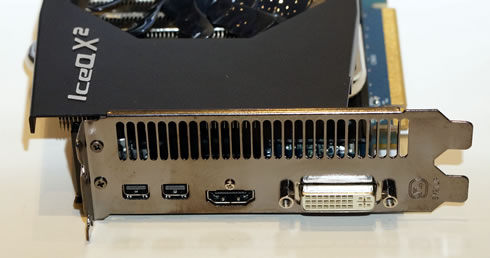

Connectivity includes two mini display port connectors, HDMI (1.4) and one DVI connector.

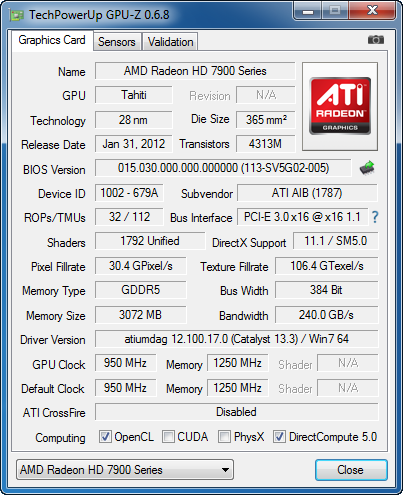

We installed the card and fired up the GPU-Z utility, which confirms the card's basic specifications:
