Asus DRW-0804P- Page 10

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs burned during the previous writing tests (jitter). The software used was Plextools v2.11 and the reader was the Plextor Premium drive.

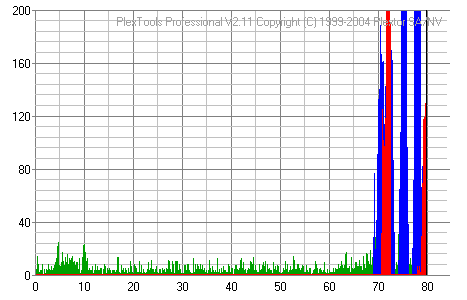

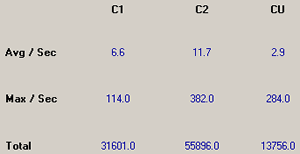

• BenQ 52X recorded at 24X

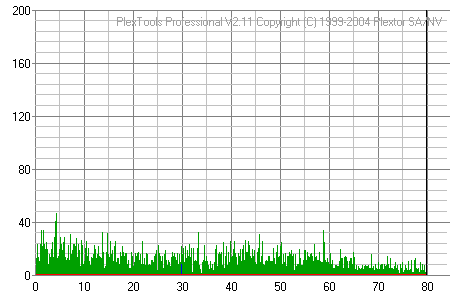

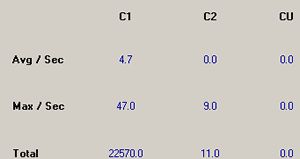

• MAM 48X recorded at 24X

• MMore 48X recorded at 24X

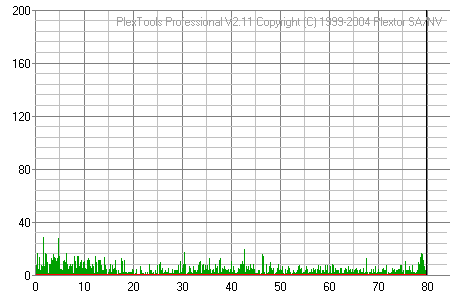

• TraxData 52X recorded at 24X

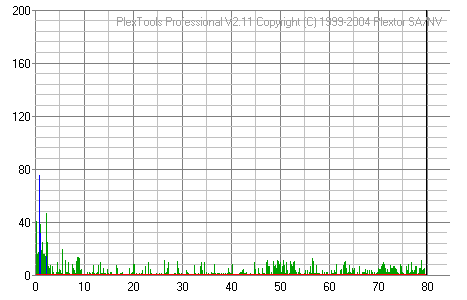

• TY 48X recorded at 24X

The quality measurements of the discs showed that the Asus is a quality writer with the CD-R format. Most discs gave back no CU errors while the C1C2 error levels were low.
