32x CD-RW Roundup Vol3

Feb 20,2002 0

5. DAE Tests



Review Pages

1. Introduction
2. Introduction - Page 2
3. Data Tests
4. CloneCD reading Tests
5. DAE Tests
6. CDR Tests - Page 1
7. CDR Tests - Page 2
8. CDR Tests - Page 3
9. Writing Quality of ASUS
10. Writing Quality of TDK
11. RW-Packet Writing Tests
12. Conclusion



32x CD-RW Roundup Vol 3- Page 5

DAE Tests

- Test Method

We used CD DAE 99 v0.3 beta and EAC v0.9 beta 2 software in order to check the DAE performance of the drive with various AudioCDs (both pressed and CDR). The posted DAE results are the average of both applications. We made a full CD Rip starting from the first to the last track of the CD. The Average DAE reported speeds are displayed in the test graphs.

- DAE features

We used EAC v0.9 beta 2 to examine the drive(s) features:

- ASUS CRW-3212

The drive supports "Caching" of data, "Accurate Stream" and includes "C2" error info.

- TDK

The drive doesn't "Caching" data, supports "Accurate Stream" and doens't include"C2" error info.

- Pressed AudioCD results

The ASUS CRW3212A is the second faster reader below AOpen CRW3248. The ASUS drive manages to outperform all other drives with maximum 40x reading speed and keeps a 30.8X average DAE ripping speed. The TDK CyClone 321040 has also good performance with 29.0X but stays away from the top:

- CDR AudioCD results

All the drives behaved the same in the CDR DAE test, as in the previous pressed CD test.

- EAC Secure Extract Ripping mode

For each drive we used the build-in detection function:

Tested Drives
Average DAE Speed (X)
Pressed
CDR
LiteOn LTR-32123S
4.4
5.0
TDK Cyclone 321040
11.5
11.3
Mitsumi CR-480ATE
11.0
11.1
AOpen CRW3248
20.1
20.3
CyberDrive CW-058D
11.2
11.3
ASUS CRW3212A
10.6
10.2

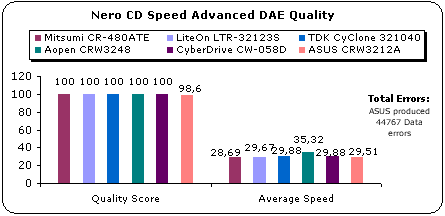

- Advanced DAE Quality

All tested drives got a 100 score (best), except from the ASUS, which stayed at 98.6 in the Nero CD Speed Advanced DAE test. The ASUS CRW3212A also produced 44767 errors.

- ASUS CRW3212A

The drive's average reading speed was 29.51x and 44767 errors were produced. As the following picture shows, the drive can read SubChannel Data and CD-Text:

Freecom 32A Nero Advanced DAE Tests Results

- TDK CyClone 321040

The drive's average reading speed was 29.88x and no errors were produced. As the following picture shows, the drive can read CD-Text/SubChannel Data:

LiteOn LTR-32123S Nero Advanced DAE Tests Results

- Bad CDR Media results

Despite the fact that Nero CD Speed Advanced DAE test stretches drive's mechanism to the max, we decided to do real life tests with a scratched disc. The disc was dirty, and with some light scratches, enough in order cause problems to most of the tested drives. We used CD DAE 99 software to rip the whole disc (756539616 sectors) and the results were very interesting:

Average Speed (X)
Errors
Errors Of Total Disc (%)
LiteOn LTR-32123S
14.4
906044
0.12
TDK Cyclone 321040
8.1
23285
0
Mitsumi CR-480ATE
10.9
353411
0.05
AOpen CRW3248
8.4
313
0
CyberDrive CW058D
27.2
17617
0
ASUS CRW3212A
30.8
16364922
2.16

The best reader for this test is AOpen. The drive lowered its reading speed down to 8x and managed to produce the lower reading errors at this roundup. The TDK Cyclone 321040 comes third with 0% error rate but 23285 errors. The ASUS CRW3212A was really fast but produced too many errors (2.16% overall).

- Ripping 90 and 99mins AudioCDs

- TDK Cyclone drive can recognize 90mins without any problems but failed to read 99min CDs.
- ASUS CRW3212A recognizes 90/99 min CDs.

- Reading/Ripping Protected AudioCDs

For the test procedure we used 3 protected AudioCDs, which we tested in both recognition and ripping (with CD DAE v0.3b/EAC v0.9 beta2) processes:

* Pressed AudioCD with Sony Key2Audio
* Pressed AudioCD with Cactus Data Shield 200 (Natalie Imbruglia - White Lilies Island)
* CDR AudioCD protected with Cactus Data Shield (CDS100) - made with Clone Audio Protector v1.1 (adding 30 secs lead-out)

Key2Audio
CDS200
CDS100
CDDAE
EAC
CDDAE
EAC
CDDAE
EAC
AOpen CRW3248
Cannot recognize disc contents
Rips up to 91%
Rips entire disc without problems
Reads all tracks as Data tracks - ripping impossible
CyberDrive CW058D
Rips entire disc without problems
Rips entire disc without problems
Problems recognize 1st track
Rips entire disc without problems
LiteOn LTR-32123S
Cannot recognize disc contents
Problems recognize 1st track, cannot rip
Recognizes tracks, cannot rip
Mitsumi CR-480ATE
Recognizes disc contents cannot rip
Rips entire disc without problems
Cannot recognize Audio Tracks
Cannot recognize Audio Tracks
TDK Cyclone 321040
Rips entire disc without problems
Rips entire disc without problems
Recognizes disc contents cannot rip/PC Halts
Rips all tracks exept 1st one
ASUS CRW3212A
Cannot recognize disc contents
Problems recognize 1st track
Cannot rip the disc contents

Both ASUS and TDK drives have problems with protected Audio CDs.. The ASUS CRW3212A cannot recognize the Key2Audio protected discs and cannot rip CDS200 titles. Lastly, TDK Cyclone can rip the Key2Audio audio tracks and cannot rip the entire disc contents of CDS200 discs.
