TOSHIBA SD-R5272 DVD±RW recorder - Page 13

PI/PO quality results

The following screenshots present the PI/PO results for various DVD-/+R and DVD-/+RW media, recorded with the Toshiba SD-R 5272 at the maximum allowed speed.

The software used for the measurements was KProbe v1.1.28, the ECC was set to 8 and the reading drive was the LiteOn LDW-811S. The specific methodology is very dependable on the drive used as a reader, while the reliability of the PI/PO provided output is not also technically confirmed. Thus as a result, we cannot safely come up with conclusive results, although we do make a comparison of the drive's behavior when using various DVD recordable/rewritable media.

The recording discs used are presented below, coming with details about each disc type.

• CMC Magnetics 8x DVD+R (recorded at 4x)

• Mitshubishi Kagaku 8x DVD+R

• Maxell 4x DVD+R (recorded at 8x)

• Philips 8x DVD+R (recorded at 4x)

• CMC 4x DVD+R

• Mitshubishi Chemicals 4x DVD+R

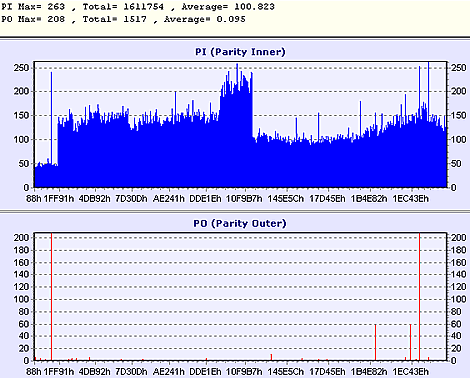

• CMC 8x DVD-R

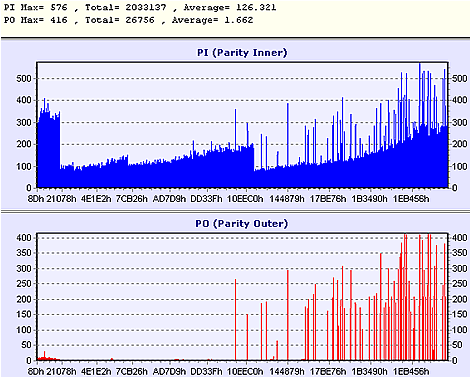

• Taiyo Yuden 4x DVD-R (recorded at 8x)

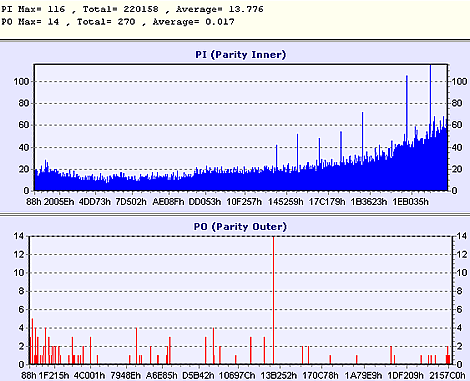

• Mitshubishi Chemicals 4x DVD-R

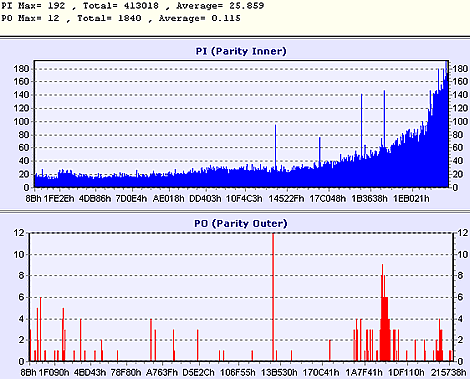

• Mitshubishi Kagaku Verbatim 8x DVD-R

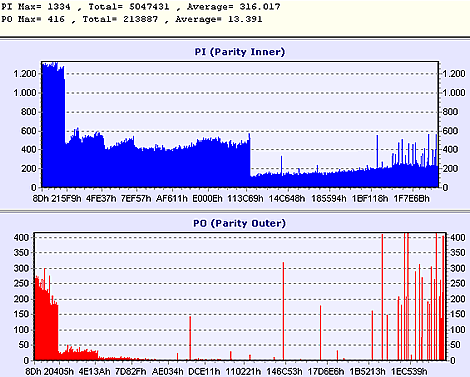

• Maxell 4x DVD-R (recorded at 8x)

• MAM 4x DVD-R

Unable for reading, even in the same drive.

• Maxell 4x DVD+RW

• Mitshubishi Kagaku 4x DVD+RW

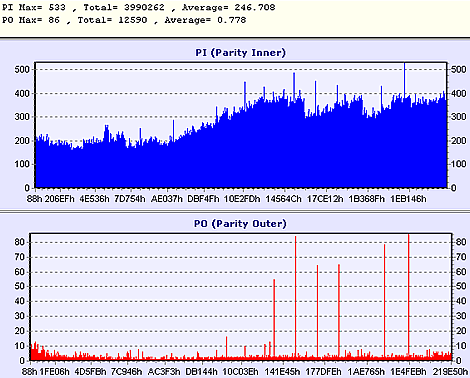

• JVC 4x DVD-RW

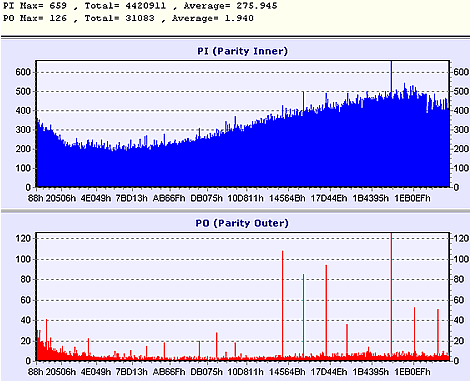

• Mitshubishi Kagaku 4x DVD-RW

The drive reported good writing quality with the most media we tested. However we experienced a few cases where the PI/PO values were slightly high.
