Toshiba's researchers have demonstrated a new technology in which microwave magnetic fields are used to reverse magnetization directions by selecting layers in a multilayer magnetic medium. The technology is expected allow for the development of hard disk drives with multilayer (3D) magnetic recording media. This research and development was performed as part of the Japan Science and Technology Agency's (JST) Strategic Innovation Promotion Program, and will be presented on 8 July 2015 at the 20th International Conference on Magnetism in Barcelona, Spain.

Magnetic recording technologies have conventionally increased the amount of information that can be stored per unit area by contracting recording bits. However, densification through the contraction is approaching the technical limits of recording density, so new high-density technologies are required. There is ongoing research for densification of solid-state storage memory technologies such as NAND through multilayering in addition to memory cell contraction. Researchers are also looking for ways to achieve multilayer structures in magnetic recording media, but until now there have been no proposed recording principles that would allow recording densities beyond the 10 Tb/in2 theoretical maximum allowed by contraction.

Toshiba has demonstrated a new technology that adopts application of microwave magnetic fields to reverse the magnetization direction by selecting layers in a multilayer magnetic medium.

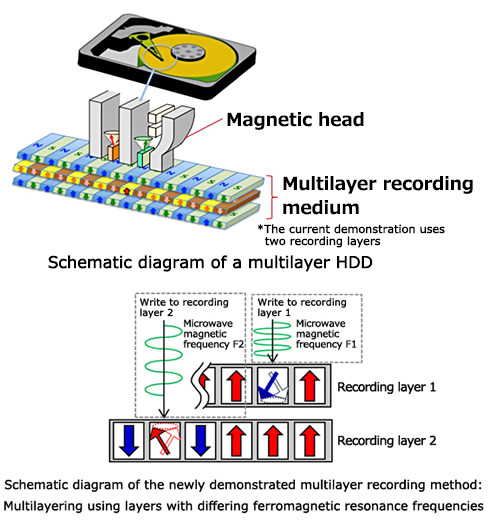

By stacking magnetic layers with different ferromagnetic resonance frequencies and applying a microwave field having a frequency corresponding to an appropriate ferromagnetic resonance, it is possible to excite a magnetization oscillation in only a specific magnetic layer. Magnetization reversal becomes possible in oscillation-excited layers, because the energy required for the magnetization reversal is reduced through a microwave assistance effect.

While this technology has been previously predicted through simulation, this experiment represents its first realization. The magnetic reversal technology we have demonstrated is a fundamental technology for magnetic recording, and can be applied to the multilayering (three-dimensional construction) of recording layers in HDDs, magnetic memory, magnetic tapes, and other high-density magnetic recording products.

To allow for rewriting of small recording bits, Toshiba is currently developing a spin torque oscillation element to which localized microwave magnetic fields can be applied. The company is also working toward the development of optimized recording media for multilayer recording.
