KIOXIA Exceria Pro 2TB NVME SSD

Jun 19,2023 0

1. Introduction / Retail Package



Review Pages

1. Introduction / Retail Package
2. Information
3. Performance
4. Conclusion



KIOXIA (formerly Toshiba Memory), is one of the biggest suppliers of flash memory modules and therefore, solid state drives (SSDs) and software solutions. KIOXIA does know how to make fast memory and the Exceria Pro series represents their best effort for high speeds over PCIe Gen4 protocol.

The EXCERIA PRO was announced back in late 2021 and introduced in 2022 at the market and was the answer from KIOXIA for the PCIe Gen4x4 interface and for demanding PC environments. In general, the PCIe Gen4 offers more than 2x the max sequential read speeds of the PCIe Gen3-based NVME drives, delivering a high-performance storage experience for content creators, gamers, and professionals. The EXCERIA PRO series features KIOXIA’s BiCS FLASH 3D flash memory, M.2 2280 type single-sided form factor and KIOXIA’s SSD Utility Management Software to help monitor and maintain your SSD.

The all-new KIOXIA EXCERIA PRO SSD Series uses next-generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express® 4.0 technology, this updated professional-class SSD series now offers up to 2TB of capacity well-suited for both high-performance desktops and notebooks needing maximum speed.

Features
  • BiCS FLASH™
  • NVMe™ 1.4 Technology
  • M.2 2280 Form Factor
  • PCIe® Gen4 x4
  • SSD Utility Management Software

Game-Changing Performance

Imagine up to 7,300 MB/s of sequential read speed and up to 6,400 MB/s sequential write speed, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.

Small and Compact for an Easy Upgrade

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

PCIe® 4.0 Technology

This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Capacity / dimensions

  • Capacity 1TB, 2TB
  • Form Factor M.2 Type 2280-S2-M
  • Interface PCI Express® Base Specification Revision 4.0 (PCIe®)
  • Flash Memory type BiCS FLASH™ TLC
  • Interface Maximum Speed 64 GT/s (PCIe® Gen4x4)
  • Dimension (Max: LxWxH) 80.15 x 22.15 x 2.23 mm
  • Interface Command NVM Express™ Revision 1.4 command set
  • Weight 1TB: 7.6 g (typ.) / 2TB: 8.0 g (typ.)

Performance

  • Max Sequential Read Speed 7,300 MB/s
  • Max Sequential Write Speed 6,400 MB/s
  • Max Random Read Speed
    • 1TB: 1,000,000 IOPS
    • 2TB: 800,000 IOPS
  • Max Random Write Speed
    • 1TB: 1,100,000 IOPS
    • 2TB: 1,300,000 IOPS
  • Endurance: TBW
    • 1TB: 400 TB
    • 2TB: 800 TB
  • MTTF 1.5 million hours

Operating environment / protection performance

  • Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
  • Storage Temperature -40 ℃ to 85 ℃
  • Shock Resistance 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
  • Vibration 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
  • Supply Voltage 3.3 V ±5 %
  • Power Consumption PS3: 50 mW (typ.) / PS4: 5 mW (typ.)
  • Power Consumption (Active) 8.9 W (typ.)

Compatibility

  • PCI Express Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
  • Connector Type M.2 M key Socket
  • Target Applications Client desktops and laptops

Others

  • Services and Support 5-year manufacturer's warranty or until the "PERCENTAGE LIFE LEFT" will be zero, whichever is shorter. The "Percentage Life Left" can be found using "Health" gauge of the SSD Utility for KIOXIA products, which is available at "personal.kioxia.com/support/".
  • Performance Optimization TRIM, Idle Time Garbage Collection

Product Info

  • 1TB / PN: LSE10Z001TG8 /EAN: 4582563854048
  • 2TB / PN: LSE10Z002TG8 / EAN: 4582563854055

The retail version of the KIOXIA EXCERIA Pro 2TB can be found online for ~187 Euro (2TB) depending on region and online store (Amazon UK, Germany, Spain, Poland, Sweden). The 1TB version can be around ~98 Euro also.

The product retail package is well designed, we like the colors and the overal design.

At the back, you will find further information and the product serial number/manufacture date

Inside the retail package, you will find a small printed manual with an installation guide.

The NVME is secured to a plastic case, which helps it survive transportation. The drive is compatible with the M2280 protocol and has 80mm x 23mm x 9.8mm dimensions and weighs 8.0gr. There is no heatsink installed. Due to the PCIe Gen4 running speeds, the included controller gets hot so it's highly suggested to install an aftermarket heatsink or keep this NVME SSD under a stock motherboard passive heatsink, else you will get thermal throttling under an extreme workload.

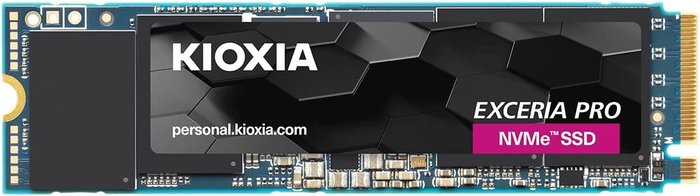

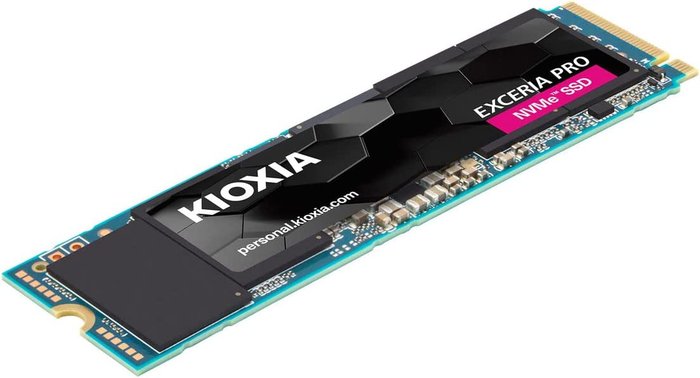

At the front, you will find the KIOXIA and the Model series (Exceria Pro) logo

, while at the back there is a sticker with the product serial number and other related information.

The drive is compliant with CE, FCC, RoHS, WHQL, PCI Express Base 3.1, and NVMe 1.4 and supports PCIe Gen 4.0 x4 connection interface.

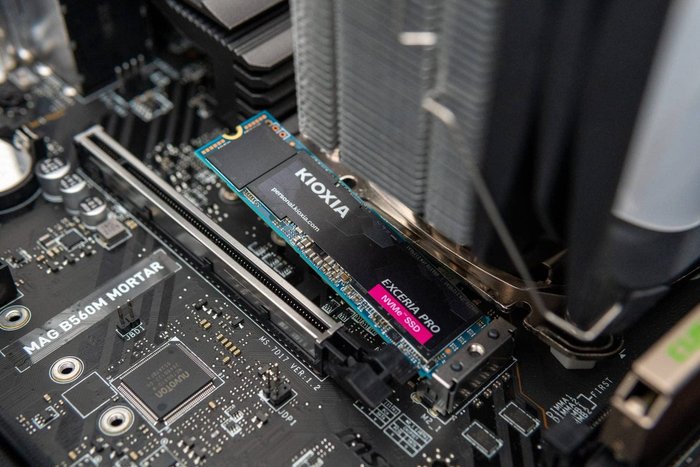

The installation procedure is very simple to operate, just find an empty NVME slot and secure the SSD.

KIOXIA uses its 112-layer 3D (BiCS5) TH58LKT2T45BA8H NAND TLC technology. The 2TB model has four chips (512GB X 4), and it's a single-side design. For the onboard controller, we don't have much information, other reviewers claimed it's a rebranded PhisonE18 controller, which is very fast and produces high-performance results. There is also an SK Hynix memory chip with 2GB of DRAM cache that for sure will help when reading/writing big file sizes, more on this later.
