Artec VPP-8D24Q - Page 9
Writing Quality Tests - 3T Jitter Tests
Here we examine the writing quality of the drive at the maximum allowed speed, 24x, using this time media from different brands.

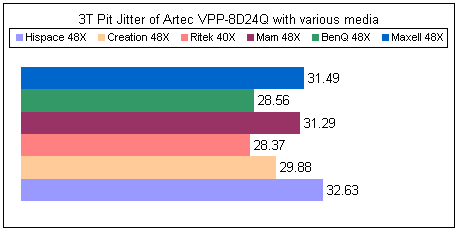

- 3T Pit results
These are extremely good results with all media. The average values, especially with BenQ and Ritek media are very low.

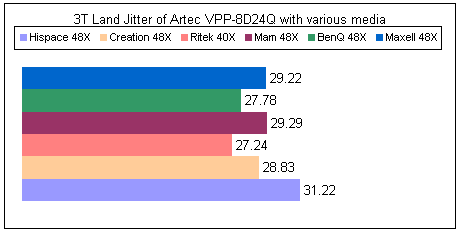

- 3T Land results
Again very good results, with only HiSpace media going over the 35ns limit.
|
Media Brand
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
|
HiSpace 48X
|
32.63
|
31.22
|
Yes
|
33 Pit, 38 Land
|
|
Creation 48X
|
29.88
|
28.83
|
No
|
33 Pit, 31 Land
|
Ritek 40X
|
28.37
|
27.24
|
No
|
30 Pit, 28 Land
|
Mam 48X
|
31.29
|
29.29
|
No
|
34 Pit, 32 Land
|
BenQ 48X
|
28.56
|
27.78
|
No
|
32 Pit, 34 Land
|
Maxell 48X
|
31.49
|
29.22
|
No
|
34 Pit, 32 Land
|
The jitter levels are low with all the tested media. The writing quality is high in all cases.
