Japanese cooling expert Scythe has made available the new Fuma Twin-Tower CPU-Cooler, which combines a compact Twin-Tower design with total height of mere 149 millimeters. The compact tower-design allows the Scythe Fuma to fit into most on-market PC chassis. Fuma is supplied with two Scythe Slip Stream 120-mm PWM fans and another fan clip set for a third fan.

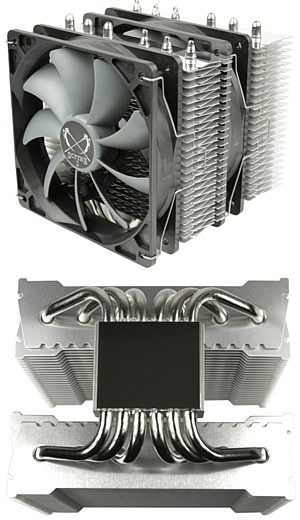

Scythe Engineers created a compact but powerful Twin-Tower heatsink with a total height of 149 millimetres. The new Fuma utilizes 6 copper heatpipes with 6-millimeter diameter. Scythe has soldered the heatpipes to the copper-baseplate and the small cooler-block, to increase contact area and maximize the heat-transfer. Both copper-heatpipes and copper-base-plate have been nickel-plated in a final step.

In order to offer great performance at low noise levels, two Slip Stream 120 mm fans with PWM-support are delivered with Scythe Fuma. The fans are offering a wide fan speed range from 300 up to 1.400 RPM. Thanks to this wide range, a system using Fuma Twin-Tower CPU Cooler can be tuned to operate really silent or to boost the performance to the maximum, whenever it is required. Users are able to mount a third fan using the supplied third fan clip set. In spite of being a Twin-Tower heatsink attached with two fans, Scythe Fuma is reaching a total weight of only 920 Grams.

New Fuma utilizes the back-plate based Hyper Precision Mounting System (H.P.M.S) for firm mounting and easy installation process. The socket compatibility list features AM2, AM2+, AM3, AM3+, FM1, FM2 and FM2+ from AMD as well as sockets LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1366, LGA2011 and 2011(-v3) from Intel. Scythe supplies the Fuma with all required mounting clips, one wrench, three sets of fan clips, one Y-fan-adapter as well as thermal grease and a manual.

Scythe Fuma (Model No. SCFM-1000) CPU Cooler is available as of today. Suggested retail price is set at 39,00 EUR (excl. Taxes).

Specifications

Model: SCFM-1000

Compatibility:

Intel:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3 Square ILM)

AMD:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+

Overall Dimensions: 137 x 149 x 130 mm / 5.39 x 5.87 x 5.12 inch (including fan)

Weight: 920 g / 32.45 oz

Accessory: mounting parts for Intel and AMD sockets, wrench, thermal grease, installation manual

Baseplate Material / Heatpipes: Nickel-plated copper

Fan Specifications

Model: Slip Stream 120 PWM

Model Number: SY1225SL12M-CJP
Dimensions: 120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 inch

Noise Level: 13.0 ~ 28.0 dBA

Air Flow: 5.6 ~ 79.0 CFM - 9.51 ~ 134.20 m³/h

Fan Speed: 300 (±300 rpm) ~ 1.400 rpm (±10%) (PWM-controlled)

Static Pressure: 0.1 ~ 15.3 Pa / 0.01 ~ 1.56 mmH²O

Bearing Type: Sleeve Bearing

Bearing Type: 2,4W

Voltage: 12V

Amperage: 0.20A
