Friday, October 08, 2004
Sony DRU-710A

1. Introduction - Retail Package

SONY DRU-710A Dual DVD Recorder - Page 1

After the release of the DRU-700A, Sony decided to up the speed for DVD+R writing from 8x to 16X. The new model to do just this is the DRU-710A and the main differences from the previous model is the 16X recording speed for the plus format and 48X for CD, up from 40X.

Since Sony is one of the biggest optical storage manufacturers, it will be interesting to see how this drive will perform and how it will face the strong competittion which already supports 16X recording for both formats, as well as 4X for Double Layer.

- Features

The Double Layer DVD+R system uses two thin embeded organic dye films for data storage separated by a spacer layer. Heating with a focused laser beam irreversibly modifies the physical and chemical structure of each layer such that the modified areas have different optical properties to those of their unmodified surroundings. This causes a variation in reflectivity as the disc rotates to provide a read-out signal as with commercially pressed read-only discs. Below is a picture showing the structure of a DVD+R DL media.

For more information about DVD+R DL technology, you can visit the DVD+RW Alliance website or Philips Research website.

The SONY DRU-710A also supports:

  • Power Burn - the technology designed to prevent errors in writing data by automatically setting up the optimum recording conditions for the media, while automatically adjusting to the delay in data transmission from a host PC. Even if data writing is interrupted due to delays in data transmission from the host PC (buffer under-run), Power-Burn technology instantly controls and accurately connects the interruption and resumption points of the data recording to give continuous writing indispensable playback compatibility. Power-Burn automatically optimizes recording conditions for the drive such as the writing speed and the strength of recording laser light, analyzing the disk quality by reading pre-recorded.

Form writing and reading speeds, the drive supports 16X (CAV) writing for DVD+R and 8X (Z-CLV) writing for DVD-R. RW formats can be both burned at 4X (CLV). The drive can also read DVD-ROM (pressed) up to 16X (CAV) while it offers 48X (P-CAV) / 24X (Z-CLV) specs for the CD formats.

- Specifications
Interface:
ATAPI (EIDE) internal interface
Burst data transfer rate:
66.6 MB/s max. Ultra DMA66
Writing Speed:

DVD+R DL: 2.4X CLV (max.)
DVD+R: 16X CAV (max.)
DVD+RW: 4X CLV (max.)
DVD-R 8X Z-CLV (max.)

CD-R: 48X CAV (max.)
CD-RW: 24X Z-CLV (max.)

Read Speed:

DVD-ROM (single layer): 16X CAV (max.)
DVD-ROM (dual layer): 8X CAV (max.)

CD-ROM: 48X CAV (max)

Random Access:
DVD: 140msec, CD: 135msec
Buffer Size:
2MB
Supported Disc Formats:
DVD-ROM, DVD-Video, DVD+R DL, DVD+RW, DVD+R, DVD-RW, DVD-R, CD-ROM, CD-DA, Video CD, Photo CD (multi-session), CD TEXT, CD Extra, and others
Supported Writing Types:

DVD±RW: Random Access Write (DVD+RW/DVD-RW/CD-RW), Sequential Write (DVD+R/+R DL/+RW, DVD-R/-RW/CD-R/RW)

CD-R/RW: Disc at Once, Track at Once, Session at Once, Packet Writing
Dimensions: 145.8 x 41.3 x 165 mm (W x H x L)

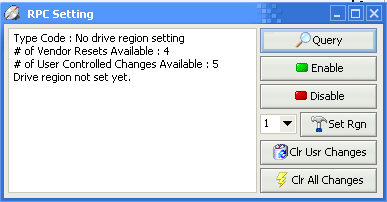

The drive uses the RPC II region control, allowing a user to change the drive's region at most 5 times, which however can easily be bypassed with various utilities, for example Kprobe's RPC setting feature:

Below are the drive's main specs as given by DVDInfoPro:

Lastly, let's see what additional information KProbe software returns:

- European Retail package

The European retail package includes the Sony DRU-710A, a quick install guide, an IDE cable and mounting screws. Also included is an extra front panel bezel, black in color, which you can swap with the white bezel that comes standard. Included software is Nero v6 OEM version.

The retail package did not contain any CD/DVD media and unfortunately no DVD+R DL.

Now let's take a look at the drive itself.

The Sony DRU-710A looks more or less the same as the previous 540A series and it has all the appropriate logos indicating the supported formats. On the front, the user will distinguish the DVD+R DL logo! As we said, SONY also provides an additional black bezel that can easily be mounted, making for a better match with black cases.

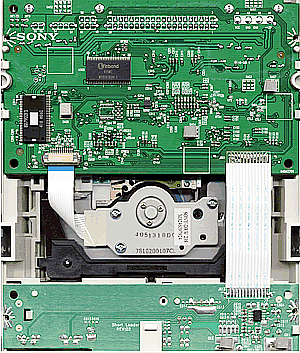

Removing the screws and opening the drive's cover voids the drive's warranty. For reference reasons, we post the following pictures. You can click on the mainboard picture for a higher resolution image:



- Installation

The drive was installed as secondary master and under WindowsXP recognized as a "SONY DVD RW DRU-710A". The drive arrived with firmware BY01. Below is a picture from Nero Burning Rom, showing the drive's specs.

In our tests, we will compare the drive with the Philips DVDRW1640P and the Pioneer DVR-108D.

- Testing software

In order to perform our tests we used:

  1. Nero CD-DVD Speed v3.21
  2. CDVD Benchmark v1.21
  3. ExactAudioCopy v0.9 beta5
  4. Nero Info Tool v2.27
  5. KProbe v2.4.2 (Reader: LiteOn LDW-811S firmware vHS0Q, Reading speed 8X CAV)
  6. PlexTools v2.16 (Reader: Plextor PX-712A firmware v1.05, Reading speed 8X CLV for CD-R)
  7. DVDInfoPro v2.54
  8. LiteOn Booktype Utility v1.0.6
  9. Nero Burning Rom v6.3.1.20
  10. Omnipatcher for LiteON drives v1.3.11
