Asus CRW-5232AS
8. 3T Jitter Tests - Page 1
ASUS CRW-5232AS Recorder - Page 8
3T Jitter Tests
- Page 1
In the following page you can see the 3T Pit & Land Jitter graphs using TraxData 52X media burned at all supported speeds.

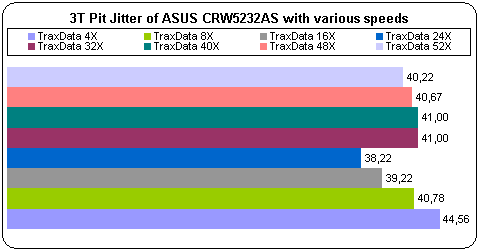

- 3T Pit results
Generally the drive did not perform satisfactorily, where at no point did any of the discs produce a reading below the 35ns Red Book limit.. The highest average 3T Pit jitter seen in the graph below, reached 44,56nsec, which is way above the Red Book limit (35nsec). The best results came at 24X writing speed.

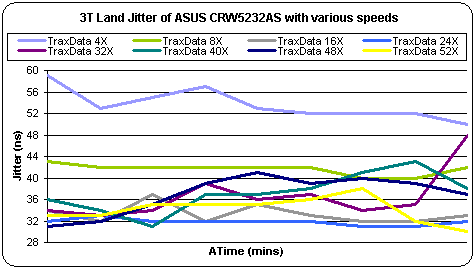

- 3T Land results
The average 3T Land results were also high. The maximum average 3T Land Jitter reached 53,67nsec and the best result were again at 24X writing speed.
