TEAC DV-W58G-A - Page 11

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs, burned during the previous writing tests (jitter). The software used was UMDoctor Pro II and the reader is the Optorite DD0401 drive.

• Taiyo Yuden 48x recorded at 8x

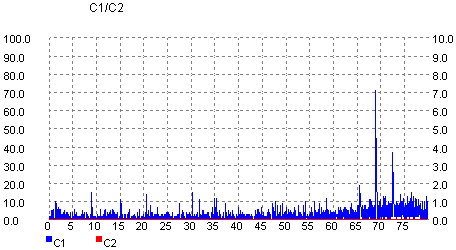

• Taiyo Yuden 48x recorded at 16x

• Taiyo Yuden 48x recorded at 24x

• Taiyo Yuden 48x recorded at 32x

• Taiyo Yuden 48x recorded at 40x

• CMC 48x recorded at 40x

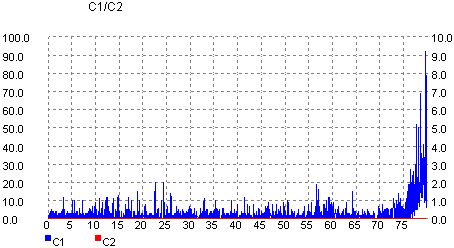

• Intenso 48x recorded at 40x

• Samsung 48x recorded at 40x

• Philips 52x recorded at 40x

• Platinum 52x recorded at 40x

Below is presented information on the CD-R media used in this test.

Disc	ID Code	Capacity
Taiyo Yuden 48X	TaiyoYuden 97m24s01f	79:59.70
CMC Magnetics 48X	CMC Magnetics 97m26s66f	79:59.71
Intenso 52x	97m17s06f	79:59.74
Mam 52x	Mitsui 97m27s58f	79:59.74
Samsung 40x	CMC Magnetics 97m26s66f	79:59.71
Philips 52x	Ritek 97m15s17f	79:59.70
Platinum 52x	Ritek 97m15s17f	79:59.70

According to UMDoctor no C2 errors were reported while the C1 levels were good, with an exception with the intenso media.
