Home > Hardware Reviews > Optical Storage > Media

Thursday, November 11, 2004
Traxdata Media Tests

17. NEC ND-2510A ( v2.16)

Traxdata Media Tests - Page 17

NEC ND-2510A ( v2.16)

Drive
NEC ND-2510A
Media
DVD
CD
Transfer Rate Read 5...12x (max 16200 kb/s) 17...40x (2550-6000 kb/s)
Transfer Rate Write DVD-R 8x ZCLV (max 11040 kb/s) CD-R 32x ZCLV (max 4800 kb/s)
DVD-RW 4x CLV (5520 kb/s)
DVD+R 8x ZCLV (max 11040 kb/s) CD-RW 16x CLV (max 2400 kb/s)
DVD+RW 4x CLV (5520 kb/s)
DVD+R9 2.4X CLV (3300 KByte/s)
Access Time 140ms 120ms
Mechanism motorized Tray load mechanism for horizonal and vertical use
Interface IDE / ATAPI
Burst Transfer Rate PIO mode 4 / Ultra DMA 33
Cashe Memory 2MB
Audio headphone jack and volume control at front plus digital-out and line-out at the back (MPC compatible)
Media/Modes supported DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Writing methods DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Compatibility MPC Level 3, MultiRead, PC2001
Weight 1.02kgr
Dimensions 148mm x 42mm x 190mm



- 2.4X DVD+R DL@ 2.4

The media is not supported by the drive's firmware.

- 8X DVD+R@ 8X

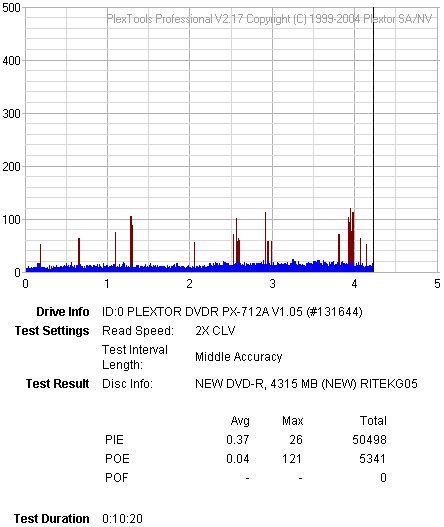

- 8X DVD-R@ 8X

- 4X DVD+RW@ 4X

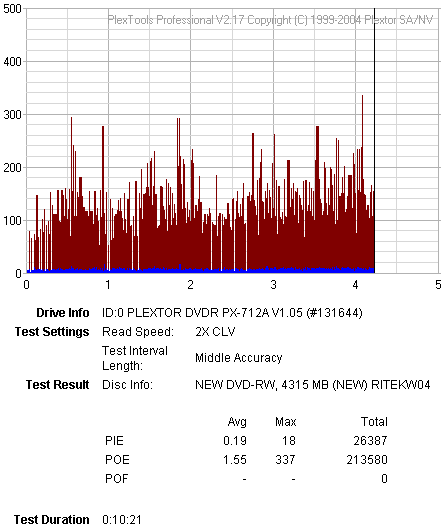

- 4X DVD-RW@ 4X



- Summary

Media Code ID Speed Time
DVD+R DL RITEK D01 - -
DVD+R 8X RITEK R03 8X 9:23
DVD-R 8X RITEK G05 8X 9:17
DVD+RW 4X RICOHJPNW11 4X 14:21
DVD-RW 4X RITEK W04 4X 13:59



Very good results with the NEC ND-2510A.
