Traxdata Media Tests - Page 20

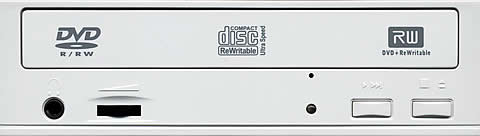

Optorite DD1205 ( v120E)

Interface	E-IDE / ATAPI (Ultra DMA mode2)
Internal Buffer Size	2MB
Data tranfer speed ( ATA I/F)	33MB/sec
Random Access Time:	DVD 130ms and CD 100 ms
Write Speed	HD-Burn	24X
	DVD+R	12X
	DVD+RW	4X
	DVD-R	8X
	DVD-RW	4X
	CD-R	40X
	CD-RW	24X
Read Speed	DVD+R	12X
	DVD+RW	12X
	DVD-R	12X
	DVD-RW	1X2
	CD-R	40X
	CD-RW	40X
	CD-DA	40X
	DVD-ROM	12X single 8X double
	CD-ROM	40X
Writng Type	DVD+R: Incremental Write (Multi Session Support) DVD-R: Disc at Once, Incremental Recording (Multi-Border Support) DVD+RW: Random Write DVD-RW: Rigid Restricted Overwriting, Incremental Write CD-R/RW: Disc at Once, Session at Once, Track at Once, Packet Writing (Multi Session Support)
Support Media Type	DVD-ROM, DVD single layer / Dual layer, DVD+R/RW, DVD-R/RW, CD-DA, CD-ROM [Mode1, Mode2 (Form1/2)], CD-ROM / XA, Mixed mode CD, CD-R/RW, CD Extra, CD-TEXT
Support Formats	DVD-ROM (UDF Bridge), DVD-ROM (ISO 9660), DVD-ROM (UDF), DVD-VIDEO, DVD-VR
Disc Size	8/12 cm discs
OS Compatibility	Windows 98SE/ME/XP/NT/2000
Dimensions (W*H*D)	148.5x42.5x194.2mm
Weight	<1.0kg (2.2lb)
Power Requirements	DC +5V± 5% / 12V± 10%, Max. 2.0A
MTBF	> 30.000 POH (duty 20%)
Enviromental Specifications	Operating Temprature: 5°C to 45 °C Storage Temprature -30°C to 60°C



- 2.4X DVD+R DL@ 2.4

- 8X DVD+R@ 8X

- 8X DVD-R@ 8X



- Summary

Media	Code ID	Speed	Time
DVD+R DL	RITEK D01	2.4X	37:41
DVD+R 8X	RITEK R03	8X	7:47
DVD-R 8X	RITEK G05	8X	9:57

Again, as with the previous drive (Optorite DD0405), the Optorite DD1205 had satisfactory results with the media except for DL where we have an unrecovered error.
