Traxdata Media Tests - Page 13

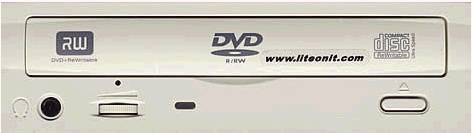

LiteOn SOHW-812S ( vUSOQ)

Interface ATAPI / E-IDE Half-Height internal DVD+R / DVD+RW / DVD-R / DVD-RW / DVD-ROM / CD-R / CD-RW / CD-ROM combination drive Buffer Size 2MB Access Time DVD Family : 160 ms CD Family : 160 ms Write Speed DVD Family DVD+R 8x ( 10800KB/sec ) maximum by Z-CLV DVD-R 8x ( 10800KB/sec ) maximum by Z-CLV ReWrite DVD+RW 4x ( 5400KB/sec ) by CLV DVD-RW 4x ( 5400KB/sec ) by CLV CD Family 40x ( 6000KB/sec ) maximum by P-CAV ReWrite CD-RW 24x ( 3600KB/sec ) maximum by Z-CLV in UltraSpeed disc Read Speed DVD Family 12x ( 16200KB/sec ) maximum by CAV CD Family 40x ( 6000KB/sec ) maximum by CAV Supported Formats DVD Family DVD single / dual layer ( PTP / OTP ), DVD-R ( 3.9 GB / 4.7 GB ), DVD-R multi-borders, DVD+R, DVD+R multi-sessions, DVD-RW, and DVD+RW CD Family CD-DA, CD-ROM, CD-ROM / XA, Photo-CD, Multi-session, Karaoke-CD, Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW Writing mode Support Fixed Packet, Variable Packet, TAO, SAO, DAO, Raw Mode Burning & Over-Burn Support OS Windows 98 / NT 4.0 / ME / 2000 / XP Dimensions 145.0 ( W ) x 41.3 ( H ) x 170.0 ( D ) mm Weight < 0.9 Kg Supprot both 8 cm and 12 cm disc of CD and DVD family



- 8X DVD+R@ 8X

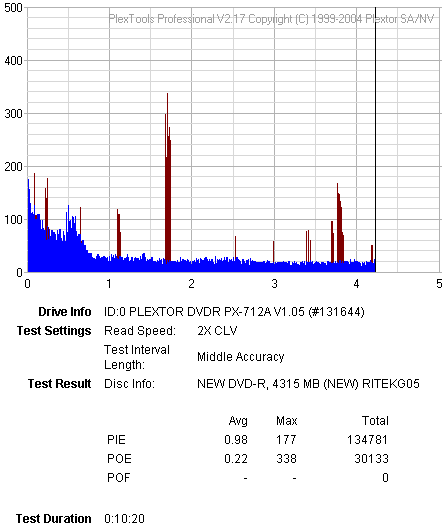

- 8X DVD-R@ 8X

- 4X DVD+RW@ 4X

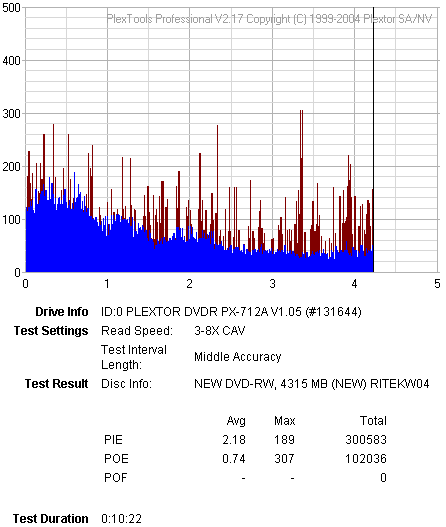

- 4X DVD-RW@ 4X



- Summary

Media	Code ID	Speed	Time
DVD+R 8X	RITEK R03	8X	8:33
DVD-R 8X	RITEK G05	8X	9:19
DVD+RW 4X	RICOHJPNW11	4X	14:04
DVD-RW 4X	RITEK W04	4X	14:39



No major problems with any of the media.
