Home > Hardware Reviews > Optical Storage > Media

Thursday, November 11, 2004
Traxdata Media Tests

10. BTC DRW1108IM ( vB129)

Traxdata Media Tests - Page 10

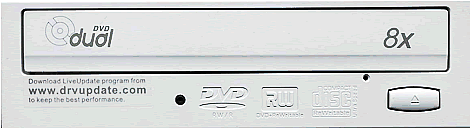

BTC DRW1108IM ( vB129)

Host/Interface

E-IDE/ATAPI, MMC compliant

Disc Data Capacity

CD: 74min/650MB, 80min/700MB

DVD: 4.7GB

Disc Data Capacity

CD: 74min/650MB, 80min/700MB

DVD: 4.7GB

Supported Media for Writing

DVD+/-R, DVD+/-RW, CD-R, CD-RW

Writing Format

DVD: DVD+/-R, DVD+/-RW, DVD-ROM, DVD-Video

CD: CD-DA, CD-ROM, CD-ROM XA, CD-Extra, CD-I, Mixed-Mode CD, Video CD, Photo CD, CD-TEXT, Bootable CD, CD-R, CD-RW, Multi-Session

Writing Methods

Track at Once, Disc at Once, Session at Once, Multi-Session, Packet Writing (Variable & Fixed), Multi-track Reservation

Writing Speed

DVD+/-R: 2x, 4x, 6x, 8x

DVD+/-RW: 1x, 2x, 4x

CD-R: 16x, 24x, 32x, 40x

CD-RW: 4x, 10x, 16x, 24x

Reading Speed

DVD+/-R max: 8x

DVD+/-RW max: 6x

DVD-ROM max: 12x

CD-R max: 40x

CD-RW max: 32x

CD-ROM max: 40x

Data Transfer Rate Max. 33MB/sec
Access time DVD: 160ms (12x) CD: 130ms (40x)
Buffer memory 2 MB with Buffer Underrun Protection
Disc Loading Tray loader, dust sealed
Mounting Method Horizontal
Audio output Digital and Analogue output
Weight 1.0kg
Dimensions (HxWxD) 41.8mm x 145.8mm x 193.3mm



- 8X DVD+R@ 8X

- 8X DVD-R@ 8X

Nero reported an unrecoverable error while Plextools could not access the disc at all.

- Summary

Media Code ID Speed Time
DVD+R 8X RITEK R03 8X 9:56
DVD-R 8X RITEK G05 8X 10:09

Not the best results possible, but this could be due to the fact that this may not be the best combination of drtive and media.
