NEC's latest addition to the market is the NEC-ND 3540A and as one can see from the specs in the table below, not many things have changed since the previous model, the 3530A. DVD±R burning speed is maxed out, so, no changes there. DVD±RW burning speed remains the same. So what does the new NEC model have to offer? Well, NEC has moved a step forward and much like all latest models, has introduced 8X +R DL burning speed.

So, the ND-3540A is a 16/16X DVD±R recorder, supporting up to 8X/6X DVD+/-RW burning speeds respectively and up to 8X for DVD+R DL and 4X for DVD-R DL media.

- Features

The WOPC feature continues to exist in the ND-3540A for optimized writing performance. Furthermore, the drive can overspeed a wide variety of media.

- Specifications

Model	NEC ND-3540A
Transfer Rate read and write	DVD +R: 16x max.
	DVD-R: 16x max.
	DVD +RW: 8x max.
	DVD-RW: 6x max.
	DVD +R9: 8x max.
	DVD-R DL: 4x
	CD-R: 48x max.
	CD-RW: 32x max.
Access time	DVD 140ms, CD 120ms
Mechanism	motorized tray load mechanism for horizontal and vertical use
Interface	IDE / ATAPI
Burst transfer rate	PIO mode 4 / Ultra DMA 33
Cache	2 MB
Media supported	DVD-ROM, DVD-R (DL approx march 2005), DVD-RW, DVD+R, DVD+RW,DVD+R9,CD-ROM, CD-R and CD-RW with 80mm and 120mm diameter
Modes supported	DVD-ROM,DVD-Video,CD-DA, CD Extra,CD Text,CD-ROM,CD-ROM XA,CD-I,CD-I Ready,CD-Bridge,PhotoCD, VideoCD
Writing methods	DAO, SAO,TAO with zero gap,variable or fixed packet, multisession
Compatibility	MPC Level 3, MultiRead, PC2001
Dimensions	148mm x 42mm x 190mm

The RPC II region control is used, allowing a user to change the drive's region at most 5 times. Below are the drive's main specs as given by NeroInfoTool, VSO Inspector and DVDInfoPro:

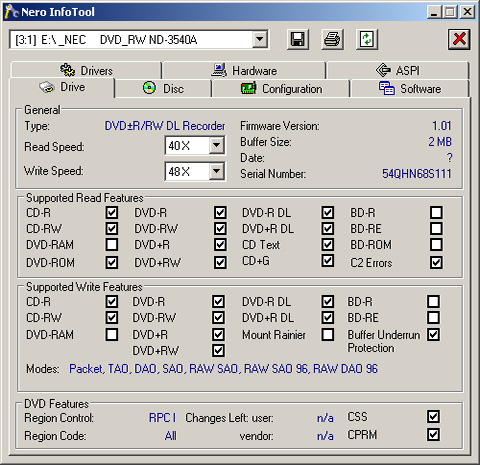

- Nero InfoTool

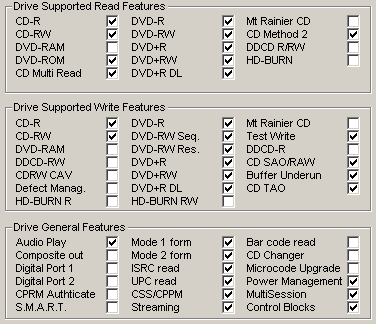

- DVD InfoPro

-VSO Inspector

- The Drive

The ND-3540A comes in two faceplate colors, typical white and black. We received the bulk version with a white faceplate. The front of the drive is a typical NEC, with a minor difference from the other NEC drives with the inclusion of the DVD+R DL logo next to the DVD+RW logo on the far right.

On the rear panel you will find the analogue and digital audio outputs (SPDIF), the IDE master/slave/cs selector pins, the IDE connector and the power input.

It is not recommended that you open the drive up, since you will void the guarantee. Instead, you can take a look at the inner workings of the drive with the help of the pictures below. Click on the below images to see a larger, more detailed photo.

The drive uses the same NEC D6364 chipset as the previous model, the ND 3530, which is known for its good burning quality capabilities.

- Installation

The drive came in with the 1.01 firmware release which happens to be the latest one so no further flashing was needed. It was identified as "NEC DVD_RW ND-3540A" under WinXP. Below is a screenshot of Nero Burning Rom's specs for the drive.
