NEC ND-3540A

Sep 2,2005 0

5. Protected Disc Tests



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality Tests - C1 / C2 Error Measurements
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. Writing Quality Tests - Almedio AEC-1000
18. DVD+R DL - Page 1
19. DVD+R DL - Page 2
20. BookType Setting
21. Conclusion



- Reading Tests

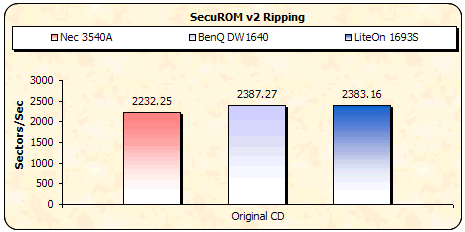

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

SecuROM and PSX ripping is no problem for the NEC drive. On the other hand, the Safedisc protection proved to be quite a handful for the ripping capabilities of the 3540A.

Game Title
Protection Scheme
Duration
Reading speed
PSX "NBA Jam Extreme"
Lybcrypt
00:55 min
1643 sectors/sec
Serious Sam The Second Encounter v1.07
SafeDisc v.2.60.052
32:28 min
172 sectors/sec
VRally II
SecuROM v.2
2:36 min
2204 sectors/sec

- Writing Tests

The NEC ND-3540A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

- Fifa 2004 - Safe Disc v3.1x

- The Sims Superstar - Safe Disc v2.9x

- The Sims Unleashed - Safe Disc v2.8x

- Serious Sam Second Encounter - Safe Disc v2.51.021

- Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Drive

Fifa 2004
SD v3.1

Sims Superstar SD v2.9
Sims Unleashed SD v2.8
Serious Sam-Second Encounter
SD v2.51.051
Max Payne
SD v2.51.020
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
NEC ND-3540A
No
Yes
No
Yes
Yes

Like most NEC based drives, the ND-3540A cannot produce working backups with the newest v2.8x, v2.9x and v3.1x builds. Partially working backups were produced for SafeDisc v2.51.051 & v2.51.020.
