ASUS DRW-2014L1T

Mar 5,2008 0

1. Introduction



Review Pages

1. Introduction
2. CD - DVD Reading
3. CD Error Correction
4. DVD Error Correction
5. Ritek CDR 48x
6. Verbatim CDR 16x
7. Verbatim CDR 32x
8. Infodisc CDRW 24x
9. Verbatim CDRW 32x
10. DaTARIUS DVD Analyzer R 2x
11. CMC MAG AM3 DVD-R 16x
12. DAXON016S DVD-R 16x
13. MCC 03RG20 DVD-R 16x
14. OPTODISC R016 DVD-R 16x
15. PRODICS F02 DVD-R 16x
16. PRODISC S05 DVD-R 16x
17. TTH02 DVD-R 16x
18. TYG03 DVD-R 20x
19. MKM 01RW6X01 DVD-RW 6x
20. MKM 01RD30 DVD-R DL 4x
21. MKM 03RD30 DVD-R DL 8x
22. DAXON AZ3 DVD+R 16x
23. MAXELL 003 DVD+R 16x
24. OPTODISC R16 DVD+R 16x
25. OPTODISC R04 DVD+R 16x
26. PRODISC R05 DVD+R 16x
27. RICOHJPN R03 DVD+R 16x
28. MCC 004 DVD+R 20x
29. YUDEN000 T03 DVD+R 16x
30. MKM A03 DVD+RW 8x
31. CMC MAG M02 DVD+R 20x
32. MXL 16 DVD-RAM 5x
33. Media List - Booktype - DVD Overburning
34. LightScribe
35. Conclusion
36. MKM 003 DVD+R DL 8x
37. MXL 22 DVD-RAM 14x
38. CMC MAG AM4 DVD-R 20x



ASUS presents this high-speed DVD burner that does not have a solution for Blu Ray media reading, but supports the Lightscribe feature (of which you can read a small presentation somewhere amongst the pages of the present review). It also supports DVD burning up to 20X speed and comes along with an extra Black Panel while at the same time being supposed to be "optimized" for Windows Vista users. We didn't have the luxury to check this drive on Windows Vista, but, this way or the other this fact, along with the SATA interface, can be considered as some of this drive's advantages.


Specification

Buffer 2MB
Lightscribe Yes
Interface SATA
Burning Software Yes

DVD Specification

DVD Read speed 16X
DVD-RAM Write speed 12X
DVD-R DL Write 8X
DVD+R DL Write 8X
DVD+RW Write 8X
DVD-RW Write 6X
DVD Access Time 140 ms
DVD+R Write 20X
DVD-R Write 20X

CD Specification

CD Re-write Speed 32X
CD Read Speed 48X
CD Write Speed 48X
CD Access Time 150 ms

Supported Disc Formats

DVD-RAM
DVD-ROM
DVD+/-R/RW
CD-Test/Extra
Photo CD
CD-DA
Video CD
CD-R
CD-RW

The retail package of the drive includes the Asus drive, a quick installation guide and Nero 7 Essentials software.As we previously mentioned, an extra blank panel is also included.

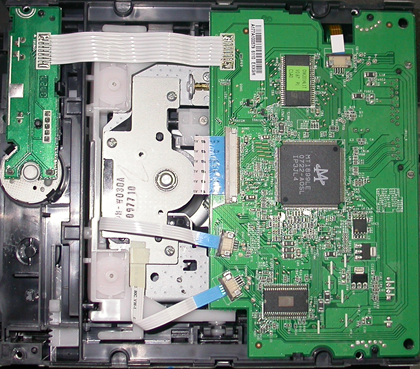

Below there is an image of the internal of the drive. The heart of the drive is the Mediatek MT1899LE chipset, also met at the company's 1814BLT 18x DVD burner.

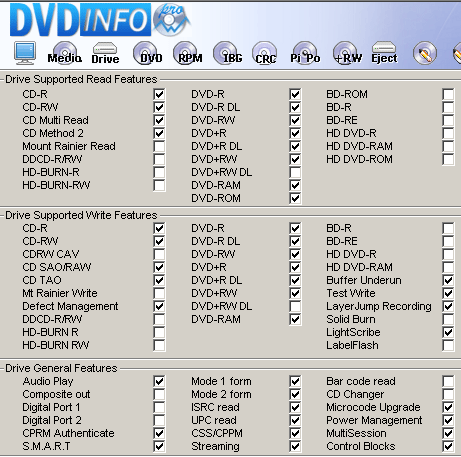

- DVD Info Pro

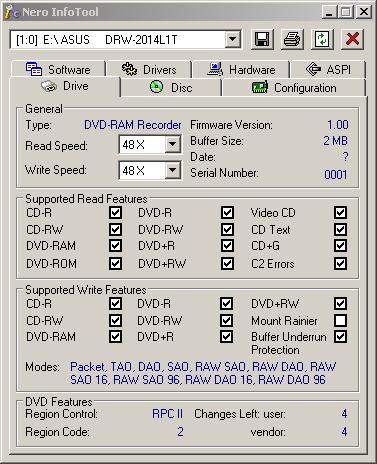

- Nero Info Tool

Update March 5 2008 - New firmware v1.02 was installed.

In this update, we mainly focus in the areas where the Asus drive had given weak performance, mainly during the burning session with DVD recordable media. The following DVD-R, DVD+R, DVD-R DL and DVD+R DL MIDs were burned and tested again:

DVD+R
DVD+R DL
DVD-R
DVD-R DL
CMCMAG M02
MKM003
CMCMAG AM4
MKM 03RD30
MAXELL003
PRODISC F02
MCC004
PRODISC S05
RICOHJPNR03
TTH02
YUDEN000T03
TYG03

In addition, we tested again the reading /writing performance of the drive with 12x DVD-RAM media. The drive burned them at 14x, meeting the nominal speed.

Notice that the reading tests in the following pages were not updated, since no major issues were reported with the original firmware ver1.00 installed.
