Samsung SH-S203D

Feb 8,2008 0

1. Introduction



Review Pages

1. Introduction
2. CD,DVD reading tests
3. CD error correction tests
4. DVD error correction tests
5. CD-R Writing tests - Ritek 48x
6. CD-R Writing tests - Verbatim 48x
7. CD-R Writing tests - CMC Magnetics 48x
8. CD-RW Writing tests - Verbatim 32x
9. The DaTARIUS DVD Analyzer R 2x
10. DVD+R Writing tests - CMC MAG E01
11. DVD+R Writing tests - DAXON AZ3
12. DVD+R Writing tests - PRODISC R05
13. DVD+R Writing tests - RICOHJPN R03
14. DVD+R Writing tests - MCC 004
15. DVD+R Writing tests - Yuden T03
16. DVD+R DL Writing tests - MKM 003
17. DVD-R Writing tests - PRODISC F02
18. DVD-R Writing tests - TTH02
19. DVD-R Writing tests - RITEK F1
20. DVD-R Writing tests - CMCMAG AM3
21. DVD-R Writing tests - MCC 03RG20
22. DVD-R Writing tests - TYG03
23. DVD-R DL Writing tests - MKM 03RD30
24. DVD-RW Writing tests - MKM01RW6X01
25. DVD+RW Writing tests - MKM A03
26. DVD writing quality summary, Bitsetting
27. Final words
28. DVD-R DL Writing tests - MKM 04RD30



Introduction

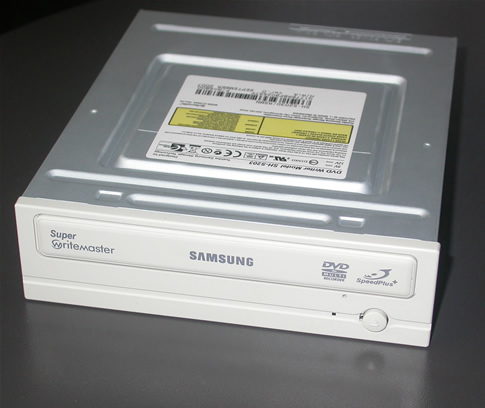

Toshiba Samsung Storage Technology Corp. (TSST) recently released the SH-S203D Super-multi DVD burner, the first drive designed to offer 16x burning for DVD+R DL and 12x for DVD-R DL media. This differentiates SH-S203D from the rest of the DVD burners of the market, which mainly offer the same specifications possibly packed with some extra features. And while the recording speeds top at 20x for the DVD recordable formats, the SH-S203D deserves some more attention as a potential top perfomer with dual-layer DVDs. The supported 12x DVD-RAM speed also comes in to complete the package.

The new SATA drive additionaly brings some enhancements mainly focused on the recording quality, including the following:

  • Lead free: Eco-product
  • Magic Speed Function: optional low-noise setting
  • Double OPC (Optimum Power Control) Technology for less digital errors in recording
  • SAT: Automatically adjusts the speed optimized for the disc quality
  • Tilt Actuator Compensation Technology for improved recording on deformed media
  • Buffer Under Run Free Technology
  • ABS - Automatic Ball Balancing System: Vibration control for unbalanced discs

- Specifications

- Drive Package Information

Along with the Samsung SH-S203D burner, the retail package includes the following:

1. Nero Express 7 Essentials - DVD/CD writing softeware

2. Nero ShowTime 3 Essentials - DVD media player

3. Nero Vision 4 Essentials - Editing &authoring wizard

4. Nero Recode 2 Essentials - Copy DVDs with one click

5. Nero Back/7up 2 - Easy back-up

6. InCD 5 Essentials - UDF packet writing software

7. Silver & black extra bezels

8. Quick installation guide

9. SATA connection cable

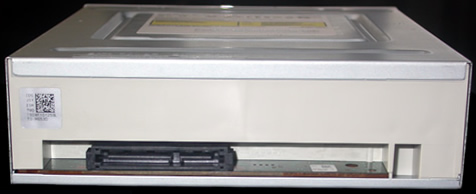

The S-ATA interface for the SH-S203D is typically placed at the rear side of the drive:

The drive is based on the Mediatek MT1859L chipset.

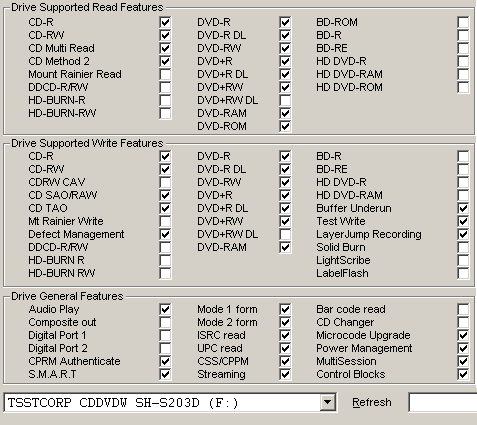

- Nero Info Tool

The drive came with firmware VerSB00 installed.

Let's move to our usual CD/DVD reading and recording tests, as well as the writing quality tests of the TSST drive, powered by DaTARIUS.
