1. Features and specifications
Today we have in our hands the The Eachlink X3 Mini, an entry-level and affordable smart box designed for entertainment. The device is powered by an AmLogic S905X3 chipset and runs in Android 9.0. It uses 4GB of memory and a 32GB eMMC can be used for installing apps and games. In terms of connectivity, you will have 2.4/5G Wifi along with 100Mbit LAN and Bluetooth.
Priced at just €35, the device sounds like a decent entertainment solution, as long as its performance and compatibility with video and audio files prove to be good. On the other hand, there are many other media players out there available at the €35-40 price range, based on the same S905X3chip, with some of them to offer on paper even better specs and possibly firmware supports.
Below you see the specifications of the Eachlink X3Mini Smart Box:
|CPU||Amlogic S905X3 Quad-core up to 2.0Ghz|
|GPU||Mali G31 MP2|
|Wifi IEEE||802.11 a/b/g/n 2.4G, 5G|
|Video output||UHD 7680*4320 or 3840*2160|
|Audio||Support DLNA, Miracast Protocol|
|Video||MPEG-1/2 Audio Layer1/2/3/MP3/AAC/OGG/FLAC/APE|
|Video decode||VP9 Profile-2 up to 8K*4K@24fps
H.265 HEVC MP-10@L5.1 up to 8K*4K@24fps
H.264 AVC HP@L5.1 up to 4K*2K@60fps
H2.64 MVC up to 4K*2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 5P/MP/AP up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
Realvideo 8/9/10 up to 1080P
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Support *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
|Power supply||Input 100~240V output DC 5V/2A|
|Interface||USB2.0 x 1, USB3.0 x 1|
|HD cable optional|
The Eachlink X3mini S905X3 4G/32G TV Box is bundled with the following items: 1 x HD Cable, 1 x Remote Control (without batteries), 1 x Power Adapter and one small printed user manual.

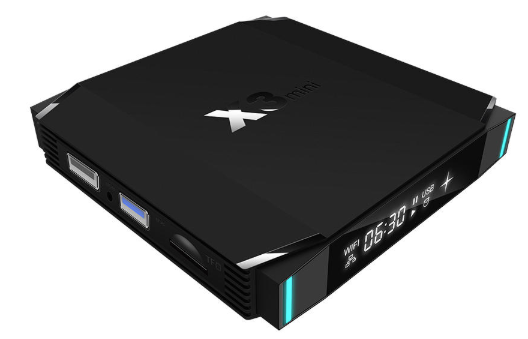

The device itself is very compact in size at around 9.6cm x 9.6cm, and its plastic cover makes it look a bit cheap.
The front panel shows the operating status of the device:.
At the rear side there are the power input, LAN, HD, SPDIF and AV ports:
The USB2.0, USB3.0 and microSD ports are placed at the side of the box:
