Home > Hardware Reviews > Optical Storage

Tuesday, August 24, 2010
LiteOn iHBS112 review

2. CD, DVD, BD reading

For our CD/DVD and Blu-ray transfer rate tests we used the Nero Disc Speed utility and a set of data and audio CD-R/RW/ROM as well as BD-R and BD-RE media. Here we test the maximum reading speed of the LiteOn drive for each type of disc. For comparison, we have included the corresponding reading results of an 8x Blu-ray burner based on the Panasonic reference design, the Sony BWU-300S, as well as the Pioneer BDR-203 8x BD burner.

-CD-ROM

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 37.04x 36.36x 31.47x

The LiteOn drive was faster here since it reads CD-ROM/-R disc at 48x.

- US RW

The following CD Speed graph shows the reading performance with US-RW media.



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 30.62x 25.21x 18.87x

Again, the LiteOn iHBS112 was faster due to the 40x supported speed.

- AudioCD

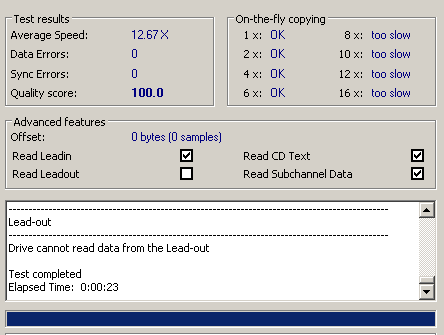

In the CD Speed Advanced DAE quality test, the drive's average speed was just 12.67x with a quality score of 100.

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 12.67x 17.56x 22.24x

- CD DAE

Digital Audio Extraction or DAE is important when we try to read the files stored on an audio CD and store them in our hard disk drive. The procedure is not always that simple and the fidelity of the extracted data depend on the way each drive handles these data.

The majority of the software that support this procedure, commonly known as "ripping", will just read the audio files and store them on your hard disk. However, this approach is not recommended for all drives, since it may result to read or sync errors if your drive does not support report of C2 error pointer information and also what the author of the EAC (Exact Audio Copy) software describes as "accurate stream" and " non-caching."

According to EAC, the LiteOn iHBS112 drive supports "caching ", "Accurate stream" and reports "C2 error pointer information

Accurate stream and C2 error reporting is always welcome and contribute to reliable and fast audio extraction. Generally, if you select a drive for extraction better have a look that the drive does not cache audio data.

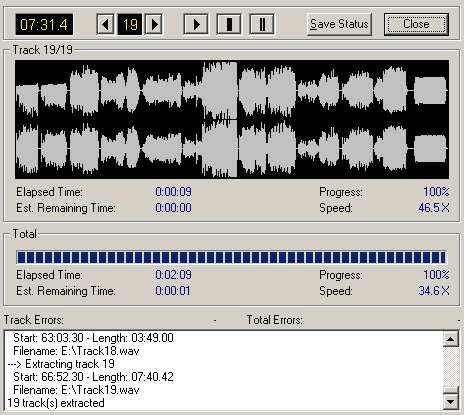

If you are sure about the physical condition of your audio CD and you need faster extractions, you may chose other utilities such as the CD DAE software. A typical ripping task finished at an average reading speed of 34.6X, using CD DAE:

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 34.6x 8.9x 26.8x



- 90/99 mins Audio disc

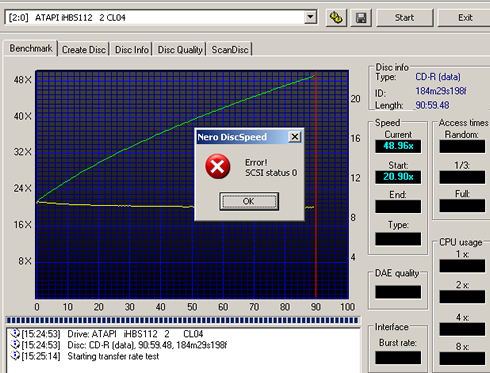

90min Audio disc

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed error 35.93x 25.20x

The drive returned an error as it was trying to read the data stored at the outer part of the disc.

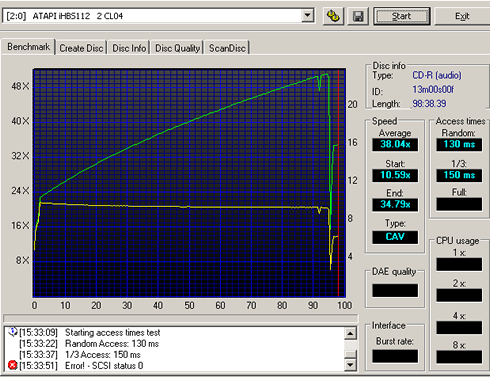

It also gave a read error in the seek time test with the 99min CD-R.

- DVD Format

Now let's take a look at how the drive performs with DVD media. This time, a set of SL and DL DVD media was used. The drive is capable of reading at 16X maximum speed for single layer DVD ROM and at 12X for dual layer DVD ROM media.

DVD-ROM SL media -



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 12.12x 12.26x 11.75x

PTP DVD-ROM -

The two layers of a PTP DVD-ROM disc are read sequentially with the drive starting reading from the inner part of the disc, which is the beginning of each layer, progressing towards its outer range.



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.20x 9.20x 9.35x

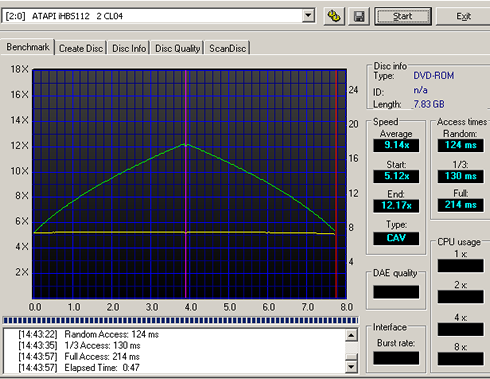

OTP DVD-ROM -

The first layer of an OTP dual layer DVD-ROM is read exactly the same way as the first layer of the PTP disc we tested previously. The difference here is the reading strategy of the second layer of the disc. The beginning of the second layer is located in the outer part of the disc, so the drive starts reading from the outer tracks and progresses towards the inner part of the disc.



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.14x 9.20x 9.34x

DVD-R

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 12.01x 12.29x 11.95x



DVD-RW



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.14x 6.15x 9.36x



DVD+R



LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 12.03x 12.31x 11.97x



DVD+RW

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.16x 6.16x 9.38x



DVD+R DL -

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.07x 6.17x 9.48x

DVD-R DL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Average Speed 9.06x 6.17x 9.07x

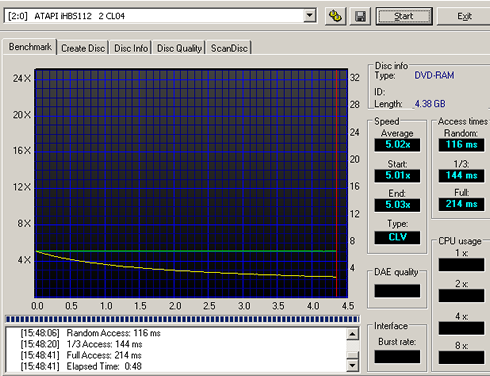

DVD-RAM 12x

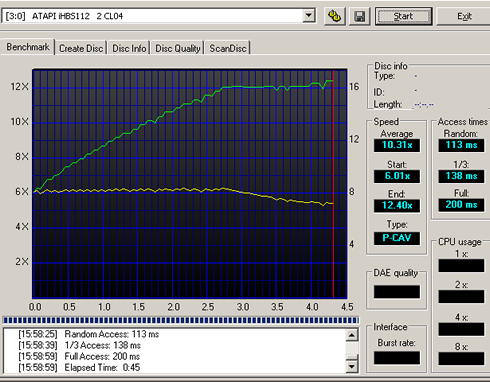

DVD Ripping speed -

Ripping of a single layer DVD movie:

  LiteOn iHBS112 Pioneer BDR-203BK Sony BWU-300S
Average 12.145KB/s (8.8x) 11.798KB/s (8.5x) 6122KB/s (4.4x)
Maximum 16.748KB/s (12.1x) 17.220KB/s (12.4x) 8497KB/s (6.1x)

- Blu-ray format

Continuing, let's see how the drive reads the various Blu-ray recordable and ROM discs.

BD-ROM-SL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 280ms 485ms 360ms
Average Speed 5.98x 6.97x 5.91x

BD-ROM-DL

5x

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 420ms 531ms 425ms
Average Speed 6.10x 7.06x 5.99x

BD-R SL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 274ms 482ms 358ms
Average Speed 6.04x 7.01 5.95x

BD-R SL LTH

The LiteOn drive is also capable of reading of BD-R Low-To-High (LTH) discs. However, as we will see later on, the drive cannot burn these discs, at least with the specific firmware revision installed.

Currently, the availability of such media is limited, with only Verbatim and Taiyo Yuden to offer them in Japan. Below you can see a reading test with a Verbatim SL BD-R LTH disc (VERBATIMw):

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 276ms 333ms 367ms
Average Speed 4.56x 2x 4.70x

BD-R DL-

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 285ms 476ms 379ms
Average Speed 6.10x 7.02x 4.70x

BD-RE SL-

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 270ms 344ms 365ms
Average Speed 6.03x 2x 5.92x



BD-RE DL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 297ms 349ms 375ms
Average Speed 4.61xx 2x 4.69x

8cm BD-R SL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 182ms 344ms 206ms
Average Speed 4.39x 2x 4.38x

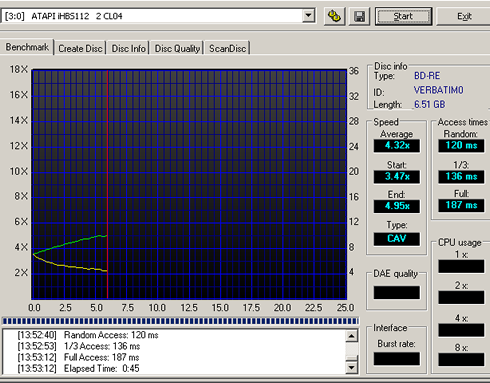

8cm BD-RE SL

LiteOn iHBS112 Sony BWU-300S Pioneer BDR-203
Full access time 187ms 242ms 216ms
Average Speed 4.32x 2x 4.38x

Summary

The reading process of almost all media was completed without read errors and at speeds that match the drive's specifications.
