Home > Hardware Reviews > Optical Storage

Wednesday, February 07, 2007

1. Introduction

Today we will be taking a look at the GBW-H10N from LG, a Super Multi Blu-ray Disc Burner that provides 4X burning speed with SL Blu-ray media. While it cannot write Blu-ray DL, it can read BD-ROM DL media at 4X. It further supports 4.8X reading speed for BD-ROM and BD-R SL media, 16X reading with DVD-ROM SL and 8X with DVD-ROM DL media, 10X with DVD±R media and 5X with DVD-RAM media. With DVD burning, it supports up to 12X maximum with DVD±R media, 4X with DVD±R DL and 5X with DVD-RAM.

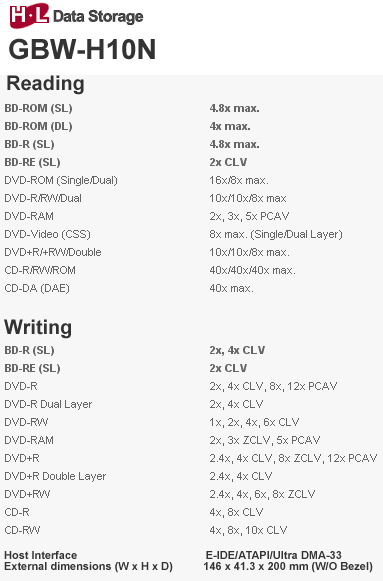

- Drive Features and Specifications

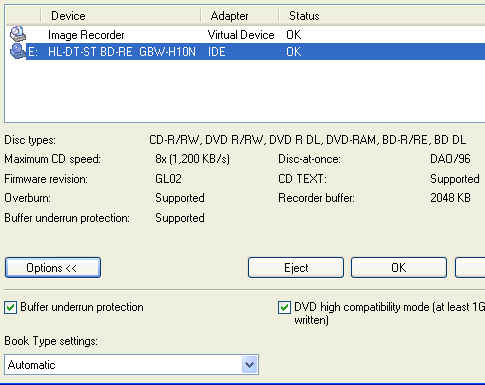

- Nero Info Tool

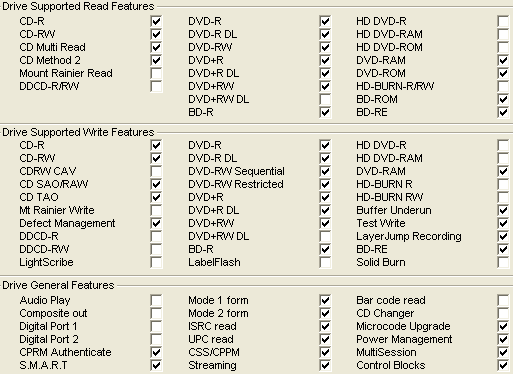

- DVD Info Pro

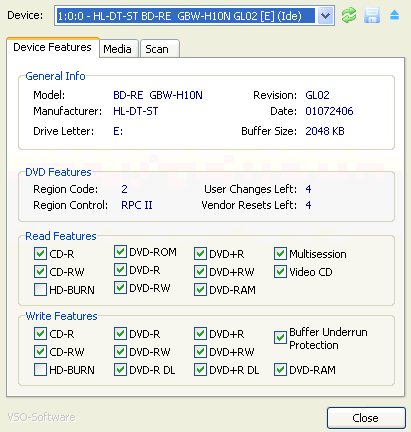

General drive information, including firmware version...

And the drive's media support features...

- Retail Package

The Retail package includes:

  • the LG burner
  • IDE cable
  • audio cable
  • mounting screws
  • a comprehensive Quick Installation Guide
  • CyberLink BD Solution with
    • Power DVD
    • PowerProducer
    • Power2Go
    • Instant Burn
    • Power Backup

PoweDVD Producer and Power DVD must be updated over the internet in order to handle BD authoring and playback.

- Front panel view

- Rear panel view

- Label

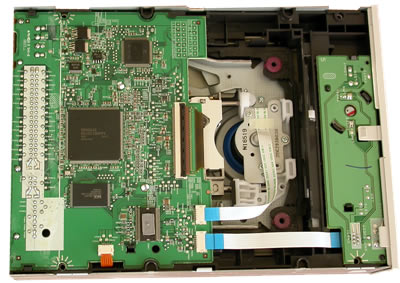

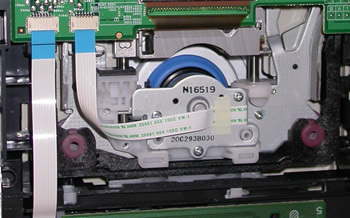

We removed the cover to take a closer look inside the drive. Removing the cover voids the warranty, so we strongly advise against it. Click on the image below for a larger, more detailed view of the drive's circuitry.

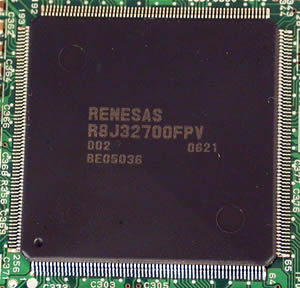

The drive uses the Renesas R8J32700FPV chipset.

- Installation

The drive was installed under WindowsXP and was recognized as "HL-DT-ST BD-RE GBW-H10N". The drive came with firmware revision GL02 installed.
