Datawrite Media Tests - Page 17

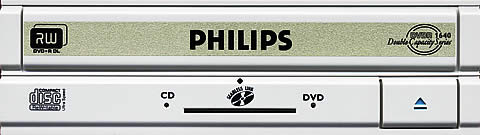

Philips DVDRW1640P (vP2.5)

Interface:	E-IDE/ATAPI (Ultra DMA Mode 2)
Writing Speed:	DVD+R: 16X, DVD-R: 8X, DVD±RW: 4X, DVD+R DL: 2.4X
	CD-R: 40X, CD-RW: 24X
Read Speed:	DVD+R/-R/+RW/-RW: 10X max
	DVD-ROM: 16X, CD-R/RW: 40X
Random Access:	DVD: 140msec, CD: 120msec
Buffer Size:	2MB
Supported Disc Formats:	8cm discs, CD-Audio, CD-Bridge, Stereo out (2 cinch), CD-I, CD-Recordable, CD-Rewritable, CD-ROM, CD-Text, DVD+R, DVD+RW, DVD-ROM, DVD/R, DVD/RW, Photo CD
Supported Writing Types:	Disc at once (DAO), Fixed packet, Multi session (MS), Over-burn writing, Packet writing, Raw mode burning, Session at once (SAO), Track at once (TAO), Variable packet
Recording format :	UDF and ISO 9660
Connectivity	Other connections :  12 V DC in, Analogue audio left / right out 2x, Master / slave select jumper, IDE interface connector
System Requirements :	Hard disc space :  500MB PC OS :  Windows 98 SE, 2000, ME, XP Processor :  Pentium III 500MHz or faster RAM memory :  128 MB
Dimensions :	20x15x4 cm (WxDxH) inch
Weight :	0.95 kg
Technical specifications :	Humidity :  5 - 90 %RH (no condensation) Operating temperature range :  5 - 50 °C Safety standards :  EN60950, EN60825,UL1950 EMC standards :  EN55022, EMS55024,FCC Part 15

• Datawrite 8X DVD-R Printable @ 8X

• Datawrite 8X DVD-R @ 8X

• Datawrite 8X DVD+R @ 8X

• Datawrite 4X DVD+RW @ 4X

- Summary

Media	Code ID	Speed	Time
Datawrite DVD-R 8X Printable	CMC MAG AE1	8X	7:58
Datawrite DVD-R 8X	CMC MAG AE1	8X	8:05
Datawrite DVD+R 8X	MCC 003	8X	9:31
Datawrite DVD+RW 4X	PRODISC W02	4X	14:09
