Monday, May 22, 2006
Thermaltake Tide Water

1. Introduction

Thermaltake is well known on the market and to end users in general, for their quality Cooling Solutions, extreme PC cases and PC modding. Although these would be enough products to please any end user, Tt has also taken steps towards developing other devices, and has established a very strong market for them as well.

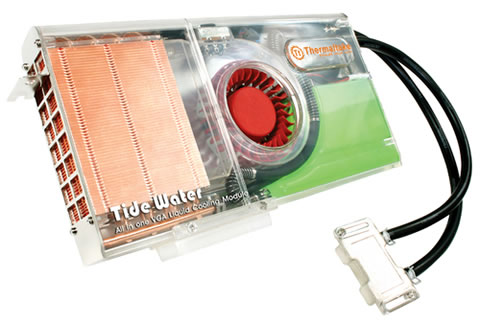

Today, we will be reviewing an extravagant water cooling solution for VGA cards, the Tide Water. This is an all in one water cooling solution, including a brazen copper waterblock, copper designed radiator and a tiny 12V pump. It can be applied to both NVidia and ATI VGA cards.

- Features

Brazing copper Waterblock
Applies to nVIDIA and ATi GPU
All copper designed Radiator
Adjustable Fan (1700~2500 RPM /17~19dBA)
Black Powerful 12 V Tiny Pump
10,000 hours maintenance-free from liquid refilling

All copper designed radiator

Adjustable fan

Brazing copper Waterblock
Black powerful 12 V pump 10,000 hours of maintenance
free from liquid refilling
Fan speed controller

- Specifications

Model

P/N:CL-W0052

Intelligent Design Tiny Liquid Cooling Module for VGA
VGA Waterblock

-8mm thickness
-Apply to nVIDIA and ATi GPU
-Support up to 120 W for GPU
-Brazing copper Waterblock

Radiator

-Pure copper designed
-Radiator with copper tube

Cooling System

-Fan speed:1700,2500 RPM
-Noise level:17,19 dB
-Fan speed controller included

Tiny Pump -DC 12V
-45(L) x 38(W) x 25(H) mm
-Pump speed:72L/hr,3400 RPM
-Life expectancy:40,000 hours
Maintenance free for liquid refilling 10,000 hours
Coolant -Anti-freeze
-Anti-rusting
Installation Plug into dual PCI slot


Airflow of the Tide Water




Fastening on dual PCI bracket

- Retail Package

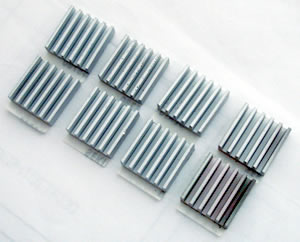

The package includes the Tide Water cooling system, all the appropriate screws for mounting, eight aluminium heatspreaders for the memory, thermal compound and the manual.

In the ensuing pages of our review, we will take an in depth look at the Tide Water cooling solution and its performance. So let's move on...
