TDK 1616N

1. Retail Package - Installation

TDK 1616N Recorder - Page 1

Most manufacturers have recently released DVD recorders supporting 16X DVD writing. TDK follows suit with their latest DVD recorder, the TDK1616N. This drive offers 16X +R/-R recording speed, along with Double Layer recording at 4X, the maximum speed available at the moment.

The TDK 1616N takes advantage of NEC's "high resolution writing strategy", as was the case with the TDK 880 and 882 models.

- Features

The TDK 1616N can read at 16X max DVD-ROM discs and 48X max CD-ROM discs. It can write at 16X for both -R and +R DVD media, and can write/rewrite at 4X in -RW and +RW discs. The recording speed for DVD+R9 discs reaches 4X. As a CD recorder, it can record at 48X max when CD-R discs are used, and 24X max with CD-RW discs. Unfortunately, this drive does not support DVD-RAM media.

- Specifications

Drive
TDK 1616N
Media
DVD
CD
Transfer Rate Write
+R

16x CAV (9 - 22MBytes/sec)

-R
48x CAV (3000-200kBytes/sec)
13x CAV (7.3 - 17.5MBytes/sec)
48xZCLV (3000-7200kBytes/sec)
12x ZCLV (8.2 – 16.6MByte/sec)
40x CAV (2550-6000kBytes/sec)
8x ZCLV (5.5 -11MBytes/sec)
40xZCLV (3000-6000kBytes/sec)
6x ZCLV (5.5-8.2MBytes/sec)
32xPCAV (2550-4800kBytes/sec)
4x CLV (5.5 MBytes/sec)
32x ZCLV (3000-4800kBytes/sec)
2.4x CLV (3.3 MBytes/sec)
24x PCAV (2550-3600kBytes/sec)
+R9
4x CLV (5.5 MBytes/sec)
24x ZCLV (3000-3600kBytes/sec)
2.4x CLV (3.3 MByte/sec)
16x CLV (2400kBytes/sec)
+RW
4x CLV (5.5 MBytes/sec)
8x CLV (1200kBytes/sec)
2.4x CLV (3.3 MBytes/sec)
-RW
24x ZCLV (3000-3600kBytes/sec)
-R
16x CAV( 9 - 22MBytes/sec)
13x CAV (7.3 - 17.5MBytes/sec)
12x ZCLV (8.2 – 16.6MByte/sec)
16x CLV (2400kBytes/sec)
8x ZCLV (5.5 -11MBytes/sec)
6x ZCLV (5.5-8.2MBytes/sec)
4x CLV (5.5 MBytes/sec)
10xCLV (1500kBytes/sec)
2x CLV (2.7 MBytes/sec)
-RW
4x CLV (5.5 MBytes/sec)
2x CLV (2.7 MBytes/sec)
4xCLV (600kBytes/sec)
1x CLV (1.38 MBytes/sec)
Transfer Rate Read
DVD-R 16x CAV (max 22000 kb/s)
CD-R 48x CAV (max 4800 kb/s)
DVD-RW 4x CLV (5520 kb/s)
DVD+R 16x CAV (max 22000 kb/s)
CD-RW 16x CLV (max 2400 kb/s)
DVD+RW 4x CLV (5520 kb/s)
DVD+R9 4X CLV (5500 KByte/s)
Access Time
140ms
120ms
Mechanism
motorized Tray load mechanism for horizonal and vertical use
Interface
IDE / ATAPI
Burst Transfer Rate
PIO mode 4 / Ultra DMA 33
Cashe Memory
2MB
Audio
digital-out and line-out at the back (MPC compatible)
Modes supported
DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Writing methods
DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Compatibility
MPC Level 3, MultiRead, PC2001
Weight
1.01 kgr
Dimensions
148mm x 42mm x 190mm

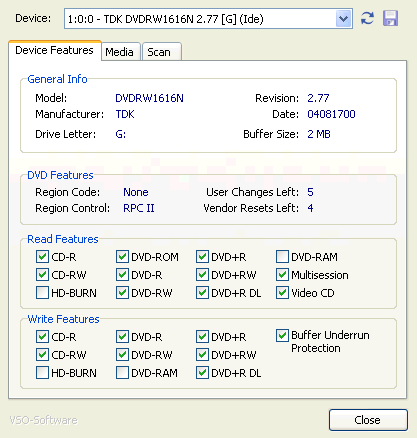

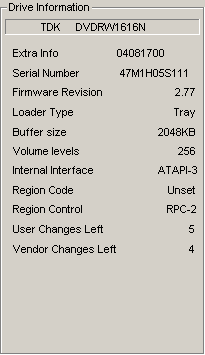

The drive does not support Mount Rainier and it uses the well known RPC II region control, allowing a user to change the drive's region at most 5 times. Below are the drive's main specs as given by NeroInfoTool. VSO Inspector and DVDInfoPro:

- The drive

The European retail package includes a software disc, software manual, technical support manual, quick install poster, screws, emergency eject pin and a TDK DVD+R 4.7GB disc.

The retail ackage also includes Nero Express 6, Nero InCD 4, Nero Vision Express 2, Nero Back IT Up, Nero StartSmart, Nero Recode 2 and Nero Showtime.

On the front panel of the drive you can see the eject button, the activity led and the eject hole. There are no volume control or headphone jack.

On the rear panel you can find the analogue and digital audio outputs (SPDIF), the IDE selection pins, the IDE connector and the power input.

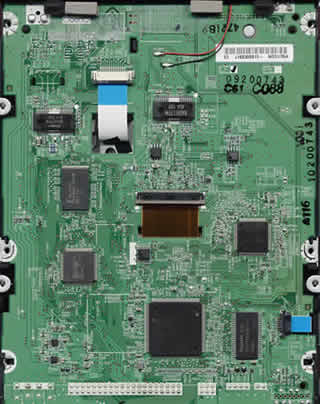

Opening the device's case will void the warranty, so we advise against it. Instead, use the photos in this review for a closer look under the hood. Clicking on the image below will reveal a high resolution image.

click to enlarge!

The main chipset comes from NEC, with part number NEC D63635GM in combination with the NEC C333500. The same chipsets are used in the Pioneer DVR-108 and ASUS DRW-1604P.

Model name
C3335
Process
Bi-CMOS 0.35
Voltage
5V
Package
120-pin TQFP (14x14mm)
Power consumption
0.66W (8x DVD playback)
0.74W 8x DVD recording)
Speeds
DVD playback
16x CAV
DVD-RAM playback
4x
DVD recording
16x
CD playback
48x
CD recording
48x

Model name
D63635
Process
CMOS 0.15
Voltage
1.5V core, 3.3V I/O
Package
216-pin LQFP (24x24mm)
Power consumption
0.35W (8x DVD playback)
0.95W (8x DVD recording, LVDS)
Interface
Host
ATA/ATAPI5
Buffer
16Mbit SDRAM
Speeds
DVD playback
16x CAV
DVD-RAM playback
4x
DVD recording
16x
CD playback
48x
CD recording
48x

The following picture shows the laser lens assembly of the TDK 1616N. By clicking on the picture, you can see a higher resolution image.

click to enlarge!

Compared to TDK 882N laser lens, you can see that the new laser lens is more advanced, achieving higher single layer and double layer recording speeds.

- Installation

The device was connected to our test PC and was identified as "TDK DVDRW116N " under WinXP. You can see that there is no book type option, just as the TDK 882N, and there is no option to write extended Lead-Out on Double Layer discs. All tests were done using the 2.77 firmware version, released by TDK.

In this review, we will be comparing the drive to the Pioneer DVR-108 since both drives have similar specifications.

- Testing software

In order to perform our tests we used:

  1. Nero CD-DVD Speed v3.21
  2. CDVD Benchmark v1.21
  3. ExactAudioCopy v0.9 beta5
  4. Nero Info Tool v2.27
  5. KProbe v2.4.2 (Reader: LiteOn LDW-811S firmware vHS0Q, LiteOn SOHD-167T firmware 9S13, LiteOn XJ-HD165H firmware CH11, and LiteOn LTD-163 firmware GH5S, Reading speed 8X CAV)
  6. PlexTools v2.16 (Reader: Plextor PX-712A firmware v1.05, Reading speed 8X CLV for CD-R)
  7. DVDInfoPro v3.16
  8. Nero Burning Rom v6.3.1.20
  9. DVD Decrypter 3.5.1.0
  10. CopyToDVD 3.0.29.48
