Friday, November 28, 2014

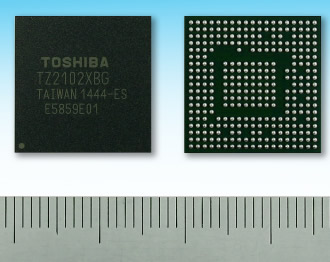

Toshiba Launches ARM-Based Application Processors with Sound, Image Data-Mining and Security Functions


Toshiba is launching three new TZ2100 application processors, the latest additions to its ApP Lite family?s ARM Cortex-A9-based TZ2000 series.

The TZ2100 high performance application processors support enhanced sound and image data-mining, along with communications and security functions.

TZ2100 can operate at a maximum frequency at 600MHz and can be used in a wide range of products such as the embedded devices, handheld devices, and industrial equipment.



Toshiba will start sampling the processors from mid-December, with mass production scheduled to start in June, 2015.

Key Features

  • ARM Cortex-A9 operating at 600MHz
    • L1 Cache: 32KByte, L2 Cache: 128KByte, Embedded FPU
    • 300MHz version is also available.
  • Accommodates DDR3-800/DDR3L-800 16bit width
  • Toshiba's power-saving technology enables long time data back-up and RTC operation
    • Enables long time data back-up and RTC operation with one single coin cell battery.
  • Camera input, graphics and LCD output
    • Suitable specification for applications such as panel control devices.
  • Secure boot system and data encryption function
    • Secure system uses encryption circuit is available as an option. Incorporating program area in a chip can be robust against data falsifying and hacking.
  • 1MByte SRAM built-in
    • 1MByte of built-in SRAM supports processing of start-up code and data during program execution, without any need for external DRAM.
  • External expanded bus interface
    • Supports use of memory with an external connection, which is necessary for amusement devices and industrial equipment
  • Specifications

    Main Specifications

    Part Number   TZ2002XBG   TZ2003XBG   TZ2100XBG   TZ2101XBG   TZ2102XBG
    CPU

    ARM Cortex-A9 MPCore
    L1I Cache: 16KByte
    L1D Cache: 16KByte



    ARMCortex-A9 MPCore
    L1I Cache: 32KByte, L1D Cache: 32KByte
    L2 Cache: 128KByte

    Max Operating Frequency
    200MHz
    300MHz
    600MHz
    FPU(Floating Point Unit)
    Not integrated
    Integrated
    Secure Boot System Control, Encrypt Data Function   Non-supported   Supported   Non-supported   Supported   Non-supported
    RAM
    1MByte SRAM
    1MByte SRAM

    32KByte SRAM(for Back-up)

    DRAM Controller

    DDR3/DDR3Lx8bit

    DDR3/DDR3Lx16bit
    External Extended Bus Interface
    Unintegrated

    Address: 27bit, Data:32bit

    2D Graphic Engine   Toshiba original graphics accelerator
    LCD Controller

    WVGA (800x480 pixel) 60fps, 24bit Parallel I/F

    High Speed Interface Controller   USB2.0 host interface, USB2.0 device interface, 10/100 Ethernet MAC
    Peripheral Functions   DMA controller, Timer/Counter, RTC
    Peripherals

    UARTx4, I2C5, I2Sx2, SPIBx4, PWMx5, 12bitADCx4, SDIOx2, eMMCx1, GPIO

      Camera I/F, UARTx4, I2Cx4, I2Sx2, SPIMx7, SPIBx2,PWMx6, 12bitADCx4, SDIOx3, eMMCx1, GPIO
    Power Supply Voltage   Core=1.1V, I/O=3.3V   Core=1.1V, I/O=3.3V
    Package

    LFBGA 280pin

    15mmx15mm, 0.8mm pitch



    LFBGA 310pin

    16mmx16mm, 0.8mm pitch

    Production Status   Mass production   Mass production from June 2015
