LiteOn LDW-401S DVD+R/+RW
1. Retail package - Installation
LiteOn DVD+RW LDW401S- Page 1
LiteOn,
the well known as manufacturer of CD-RW/combo recorders, introduced its first
DVD+R/RW writer, the LiteOn LDW-401S. The Taiwanese manufacturer has chose
the "plus" format for its debut in the DVD recording market, without
however,
following the same policy for the future products. The ATAPI/IDE half-height
DVD+RW writer supports 4x writing for both DVD+R/+RW formats.
-Features
Smart-Burn
technology is engaged by LITE-ON due to succeed buffer- under-run-free function
and great media compatibility for high-speed writing DVD+R, DVD+DW, CD-R,
CD-RW media.
With
the Smart-X technology LiteOn gives you the opportunity for constant Audio
CD/VCD/DVD playback and excellent data extraction. The buffer memory of 2MB
helps on DVD recording procedure.
- VAS® Reduce vibration & noise during recording & reading
- Specifications
DVD Family |
||
Writing |
DVD+R |
4x (5400KB/sec)
CLV |
| Rewriting | DVD |
4x (5400KB/sec)
CLV |
|
Reading Speed |
DVD-ROM (Single layer ) |
12x (16200KB/sec)
maximum CAV |
DVD-ROM
(Dual layer)
|
8x (10800KB/sec)
maximum CAV
|
|
| Access Time | 160 ms | |
CD Family |
||
Writing Speed CD-R |
40x (6000KB/sec)
maximum CAV |
|
| ReWriting speed CD-RW | 24x (3600KB/sec) maximum PCAV in UltraSpeed disc | |
| Reading | 40x (6000KB/sec) maximum CAV | |
| Access Time : | 140 ms | |
| Buffer Size : 2MB | ||
Dimension :145 ( W ) x 41.3 ( H ) x 170 ( D ) mm |
||
| Writing methods : | Fixed Packet, Variable Packet, TAO, SAO, DAO, Raw Mode Burning & Over-Burn | |
| DVD read format: | DVD single/dual layer (PTP, OTP), DVD-R (3.9G/4.7G), DVD-R multi-borders, DVD+R, DVD+R multi-sessions, DVD-RW, and DVD+RW | |
| CD read format: | CD-DA, CD-ROM, CD-ROM/XA , Photo-CD, Multi-session, Karaoke-CD, Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW | |
| Transfer mode : PIO mode 4, DMA mode 2 and Ultra DMA mode 2 | ||
| Support both 8cm and 12cm disc of CD and DVD family | ||
As you can see from the tables above LiteOn supports writing for DVD+R/RW and CD-R/RW media. The burn procedure can easily approach the 4x speed under CLV with DVD+R and DVD+RW media. As far as it concerns the CD family, the maximum writing speed for the CD-R is 40x CAV and 24x P-CAV for CD-RW Ultra Speed discs. The internal memory of the drive is 2MB.
LiteOn LDW-401S uses the RPC II region control, allowing user to change the drive's region 5 times in total. For our tests, we set the region code to 2 (Europe). The drive supports reading of all the DVD recordable/rewritable discs except DVD-RAM which is also not included in the writing capabilities of the drive along with the DVD-R/-RW format and Mount Rainier.
- Unpacking
The
European retail package includes the LiteOn IDE drive, one 4.7GB 4x DVD+R by
Ricoh, one 4.7GB 4x DVD+RW by Ricoh, a quick installation guide,
an audio
cable and mounting screws.
The attached software includes only Cyberlink's Power DVD XP for video playback LiteOn could definitely include at least a burning /authoring software for CD/DVD, as it is usually happens with all the compatible retail boxes.
The front panel of the drive is colored in ordinary gray with an eject/load button, a busy led indicator which is green at the read process and red at the writing, a headphone jack with a volume control knob and the emergency eject hole.
On the disc loading tray you can see the sticker of the LiteOn website URL placed on the right next to the CD-RW format logo while the DVD+RW format logo is placed on the left side of the tray.

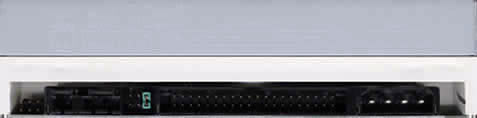

On the rear panel you can see the analog output, the ATAPI interface connector and the power input.
The mainboard of the drive is available in the following picture. You can click on the picture to see it in a higher resolution but please be patient while it is loading.
- Installation

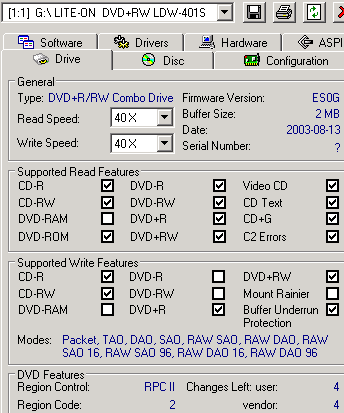

The LiteOn drive was connected to our test PC and was identified as "LITE-ON DVD+RW LDW-401S" under WinXP. All tests were done with firmware revision ES0G.
