Zaward Vapor 120

Feb 15,2010 0

1. Features, specifications



Review Pages

1. Features, specifications
2. A closer look
3. How we test
4. Results
5. Final words



Manufacturer
Zaward
Model
Vapor 120
Price

$48

Category
Power users

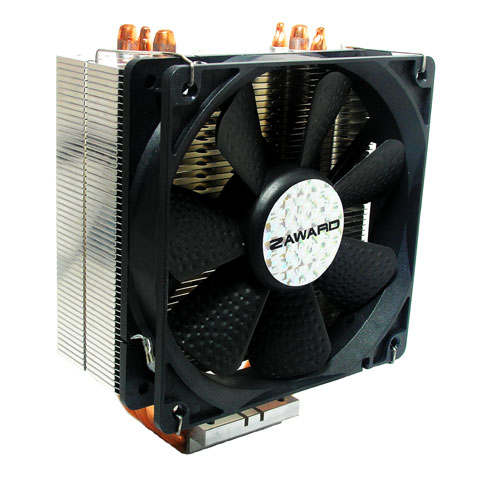

PC cooling specialist Zaward has recently released its latest CPU cooler code-named Vapor 120. The cooler features the patent pending 'breathable' heatsink design, promising to offer high performance while being available at an affordable price.

Featuring a Direct Heat Pipe Contact (H.D.T) with the CPU, the cooler provides rapid heat transfer. In addition, Zaward has installed a 120mm fan for efficient air flow through the heatsinks. The cooler is compatible with all the latest sockets.

Before we run our benchmarks, let's see a few details about this cooler.

- Product features

  • Patented heatsink with breathing effect design for most energy saving and low noise level.
  • Patented backplate mounting kit applicable for LGA1156, LGA1366, LGA775, AM3, AM2, AM2+ and K8.
  • Patented copper heat pipe direct touch (H.D.T.) with CPU to absorb the heat efficiently.
  • Patented Golf Fan with PWM function for speed adjustment.
  • Dual fan installation option.
  • Assembly easily and friendly.
  • Dual direction installation option for AMD sockets.

- Specifications

Heatsink
Application Socket
Intel LGA775, LGA1156, LGA1366
AMD AM2, AM2+, AM3, 754, 939, 940
Dimension 120 (W) x 50 (D) x 160 (H) mm
Fin Aluminum alloy with 3 x O8mm copper heatpipes
Base Aluminum with H.D.T
Fan
Dimension 120 x 120 x 25 mm
Voltage rate DC 12V
Consumption current 0.45A max.
Rated input power 5.4W max.
Air pressure 3.47 mmAq
Bearing type Long life Duro bearing
Speed 300±200 rpm ~ 2000±10%
Air flow 93.96 CFM max.
Noise level 10~34.3 dBA
Connector 4 pin with PWM function
LED 4 blue
Life time 60,000 hours
Thermal resistance 0.15 °C/W
Weight(Net) 684 ± 20g



Review Pages

1. Features, specifications
2. A closer look
3. How we test
4. Results
5. Final words
