Philips DVDR1640P DL Recorder - Page 10

Writing Quality Tests - C1 / C2 Error Measurements

We measured the C1 / C2 error rate of the recorded discs we burned at the maximum of 40X supported writing speed. The software used was PleXTools Professional v2.16, and particularly the built-in Q-Check utility. The reader was the Plextor PX-712A (firmware v1.05).

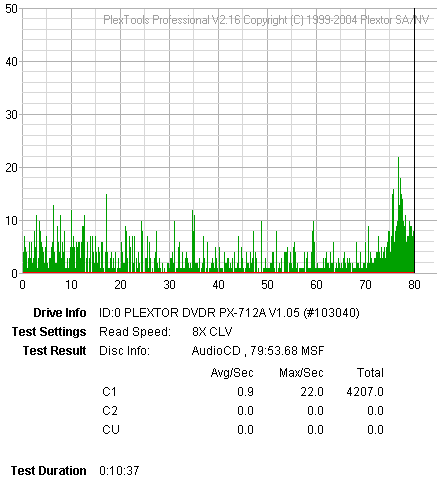

BenQ 80min 52X @ 40X

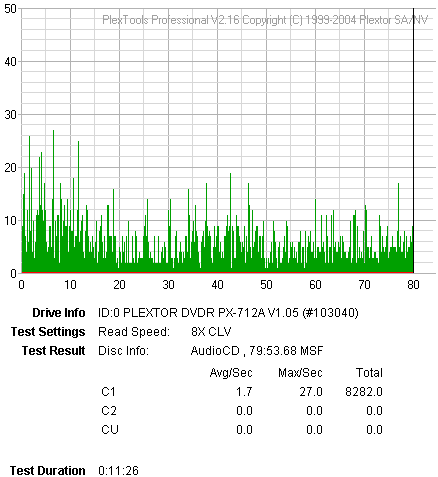

Traxdata 80min 52X @ 40X

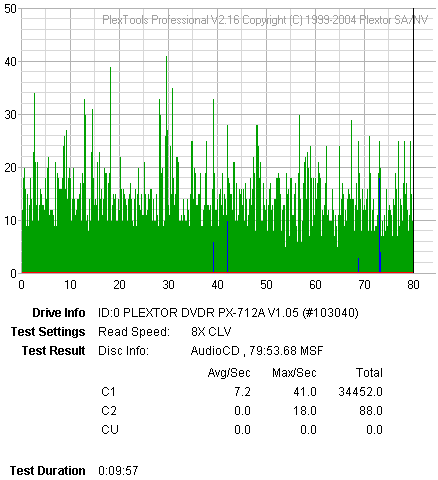

SKC 80min 52X @ 40X

Taiyo Yuden 80min 48X @ 40X

Intenso 80min 48X @ 40X

Waitec 80min 52X @ 40X

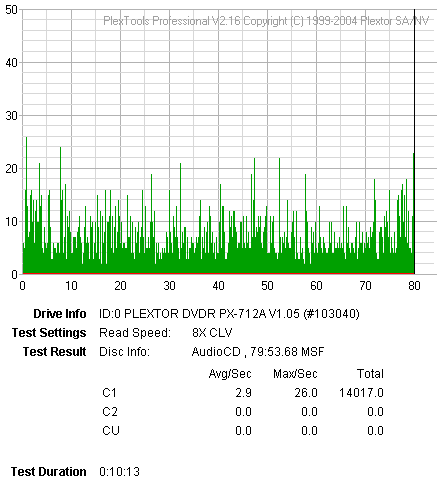

MMore 80min 52X @ 40X

- Summary

The DVDR1640P drive produced some C2 errors with specific CD-R media. However, overall we can say that the CD writing quality was good.

- Appendix

Media Label	ID Code	Manufacturer Name	Lead Out TIme
BenQ 52X	97m22s67f	Daxon.	79m59s74f
Traxdata 52X	97m15s17f	Ritek	79:59.70
SKC 52X	97m26s26f	SKC Co., Ltd.	79m59s73f
TY 48X	97m24s 1f	Taiyo Yuden	79m59s72f
Intenso 48X	97m32s19f	Prodisc	79m59s71f
Waitec 52X	97m28s26f	Multi Media Masters & Machinery SA	79m59s74f
MMore 52X	97m17s 6f	Moser Baer India, Ltd.	79:59.74
