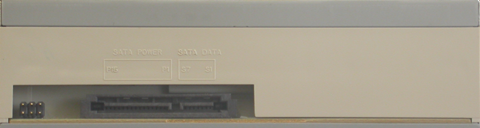

LITE ON present its new DVD-Burner, the LH-20A1S, supporting the 20X writing speed for DVDs. The new drive offers SATA connection which is the main difference with the LH-20A1H which offer PATA ( Parallel ATA).
Let's move on to the feature list and drive specifications...
- Drive Features ..
- Serial ATA Half-Height internal DVD+R / DVD+RW / DVD-R / DVD-RW / DVD+R9/ DVD-R9 / DVD-RAM / DVD-ROM / CD-R/ CD-RW / CD-ROM combination drive.
- Support Double Layer DVD+/- R9 Recording Function.
- Smart-Write™ - Self-learning technology ensuring best writing quality with all media.
- SMART-BURN avoiding Buffer Under Run error, Automatically adjusting writing strategy & running OPC to provide the best burning quality.
- SMART-X function adjusts CD-DA / VCD / DVD data extraction to a fastest allowable speed according to both data request rate from host and disk quality.
- ABS system reduce vibration and noise during recording and reading.
- Support Fixed Packet, Variable Packet, TAO, SAO, DAO, Random Access time, Incremental, sequential recording, restricted overwrite, Layer Jump recording, Raw Mode Burning & Over-Burn.
- DVD read compliant: DVD single/dual layer (PTP/OTP), DVD-R(3.9GB/4.7GB), DVD-R multi-borders, DVD-RAM, DVD+R, DVD+R multi-sessions, DVD-RW, and DVD+RW.
- CD read compliant: CD-DA, CD-ROM, CD-ROM/XA, Photo-CD, Multi-session, Karaoke-CD, Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW.
- Support both 8cm and 12cm disc of CD and DVD family.
- Conform to Orange Book: Part 2 CD-R Volume 1, Part 2 CD-R Volume 2 Multi Speed, Part 3 CD-RW Volume 1 (1x, 2x, and 4x), Part 3 CD-RW Volume2: High Speed, Part 3 CD-RW Volume 3: Ultra Speed. Support Fixed packet, Variable packet, Disc-at-once, Session-at-once and Track-at-once.
- Supported transfer mode: PIO mode 4, DMA mode 2 and Ultra DMA mode 4.
- .. And Specification
|DVD+R||20X maximum by CAV|
|DVD-R||20X maximum by CAV|
|DVD+R9||8X maximum by Zone CLV|
|DVD-R9||8X maximum by Zone CLV|
|DVD-RAM||12X maximum by PCAV|
|DVD+RW||8X by Z-CLV|
|Read||16X maximum by CAV|
|CD-R||48X by CAV|
|CD-RW||32X maximum by Z-CLV in UltraSpeed disc|
|Read||48X(7200KB/sec) maximum by CAV|
- Drive Package Information
The retail package includes the LITEON LH-20A1S, and Nero 7 Essentials:
- Nero Express 7 Essentials
- Nero ShowTime 3 Essentials
- Nero Vision 4 Essentials
- Nero Recode 2 Essentials
- InCD 5 Essentials
- Nero PhotoShow Express 4

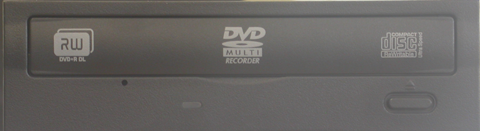

The drive comes with a black front bezel as well as with two extra ivory bezels to match your PC case.
The heart of the drive is the MediaTek MT1899E.
An inside look...
- Nero Info Tool

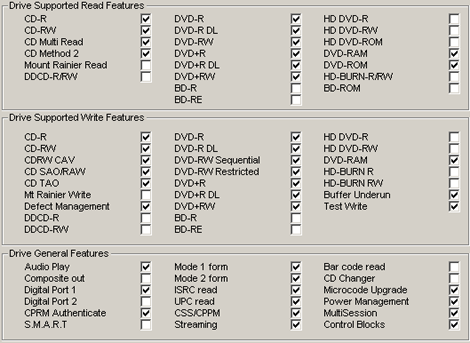

- DVD Info
In the following pages, we start with our usual CD and DVD reading and recording tests, and progress to the writing quality tests which include the DaTARIUS measurements.
