Intel E8600

Sep 8,2008 0

1. Introduction



Review Pages

1. Introduction
2. Retail package, installation
3. Benchmarks - Everest Ultimate Edition, SiSoftware Sandra
4. Benchmarks - PCMark Vantage, SYSmark 2007 Preview
5. Benchmarks - CINEBENCH, x264 HD Benchmark, TMPGEnc 4 Xpress
6. Benchmarks - SuperPI, wPrime
7. Benchmarks - 3DMark06, Crysis, Unreal Tournament 3 Demo
8. Overclocking
9. Conclusion

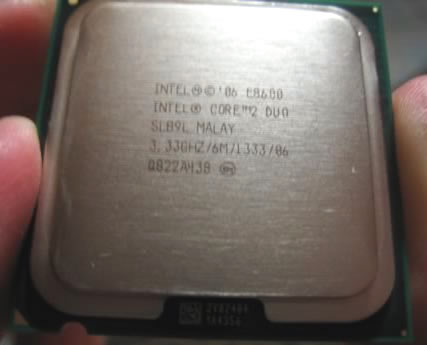

Some time ago we had the chance to review the first batch of Intel's 45nm quad-core cpu processors code-named Yorkfield and today we will examine the latest and fastest Wolfdale C2D processor, the Intel C2D E8600.

All the latest Wolfdale processors come with a 6MB L2 cache and feature support a 1333MHz FSB.

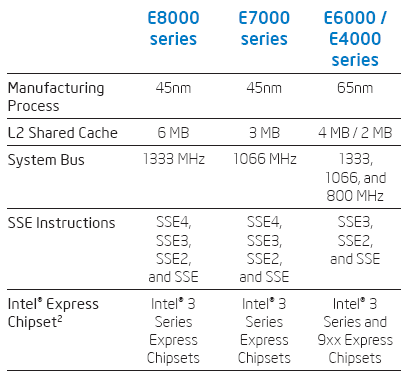

Let's start with a quick comparison amongthe various C2D series of processors.

The Intel E8600 has several "new" features/improvements compared with previous Wolfdale processors. The differences between C0 and E0 core steppings may not interest you ta all, but there are present and will hopefully offer higher overclocking.

According to an Intel document there is a new function called "Power Status Indicator", that allows motherboards drop their VRM down from a multi-phase circuit to a single-phase circuit to save power at idle state.

There were also two additional instructions added to the instruction set, the XSAVE and the XRSTOR, neither of which are world changing. Lastly, the E0 stepping features a step towards being green with the introduction of a halide-free package.

- Specifications

sSpec Number
SLB9L
CPU Speed
3.33 GHz
PCG:
06
Bus Speed
1333 MHz
Bus/Core Ratio
6~10.0
L2 Cache Size
6 MB
L2 Cache Speed
3.33 GHz
Package Type
LGA775
Manufacturing Technology
45 nm
Core Stepping
E0
CPUID String
10676h
Thermal Design Power
65W
Thermal Specification
72.4°C
VID Voltage Range
0.85V – 1.3625V
Box Order Code
BXC80570E8600
BX80570E8600
OEM Order Code
AT80570PJ0936M
