BTC DRW1008IM DVD±RW recorder - Page 11

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs burned during the previous writing tests (jitter). The software used was UMDoctor Pro II, and the reader the Optorite DD0203 drive.

Taiyo Yuden 48x recorded at 8x

Taiyo Yuden 48x recorded at 16x

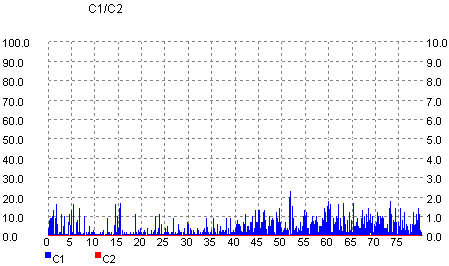

Taiyo Yuden 48x recorded at 24x

Taiyo Yuden 48x recorded at 32x

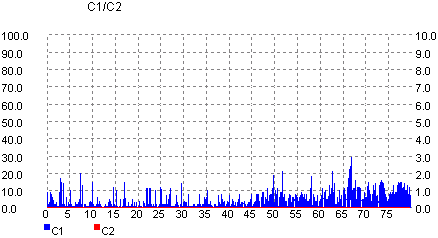

Taiyo Yuden 48x recorded at 40x

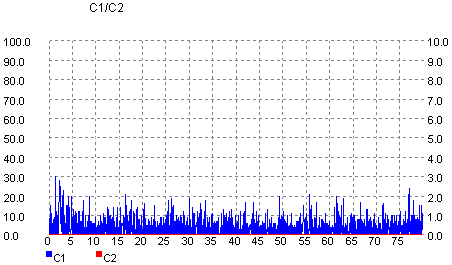

Memorex 52x recorded at 40x

Ritek 48x recorded at 40x

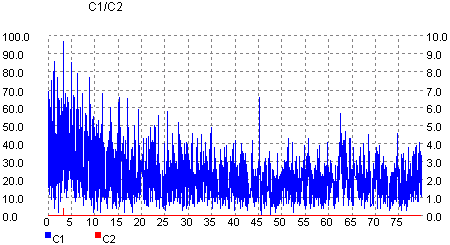

Creation 48x recorded at 40x

SKC 48x recorded at 40x

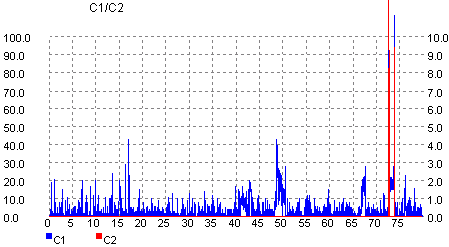

Hi-Space 48x recorded at 40x

Below is presented information on the CD-R media used in this test.

Disc	ID Code	Capacity
Taiyo Yuden 48X	TaiyoYuden 97m24s01f	79:59:72
Memorex 52x	Fuji 97m:26s45f	79:59:73
RITEK 48x	Ritek 97m15s17f	79:59:71
Creation 48x	Plasmon 97m27s18f	79:59:71
Hi-Space 48X	MPO 97m25s07f	79:59:00
SKC 48X	SKC 97m26s26f	79:59:73

- Summary

In the main, these are very good results. The C1 levels are rather low, with the exception of Creation media. C2 errors were reported with Creation and more pronounced with Hi-Space media. In the case of Creation media, the C2 errror levels appear to be located in the same region on the disc which produced the high jitter values in our previous tests. Other than this, the remaining results were very good.
