be quiet! Pure Rock 2 FX

Aug 1,2022 0

1. Introduction



Review Pages

1. Introduction
2. Retail Package
3. Installation process
4. Performance
5. Conclusion

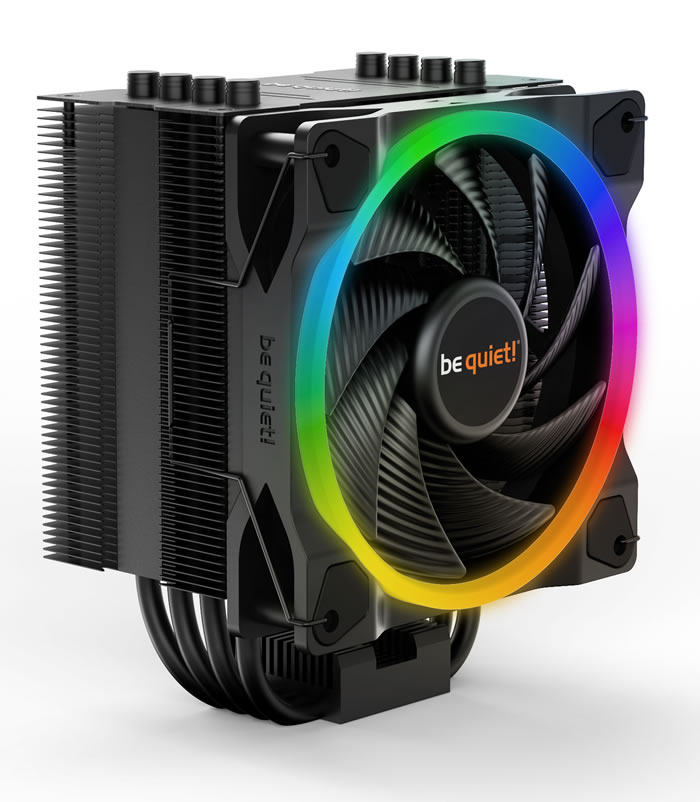

be quiet! today (01-08-2022) announced recently a new CPU cooler aimed for the entry-middle size category, the Pure Rock 2 FX CPU cooler. Pure Rock 2 FX Black combines vibrant ARGB illumination with high cooling efficiency and is excellent for quiet multimedia and gaming systems. With a Light Wings 120mm PWM high-speed fan, 150W TDP cooling efficiency and four 6mm high-performance heatpipes, Pure Rock 2 FX Black offers an excellent price-to-performance ratio.

The offset design of Pure Rock 2 FX, which moves the heatsink back towards the exhaust of the case, avoids blocking the memory slots next to the processor socket. Installation is made easy by the convenient top mounting system. Compatibility with all current CPU sockets from AMD and Intel (except TR4 and sTRX4) make Pure Rock 2 FX an ideal upgrade from stock coolers and due to its modest dimensions of 155 x 121 x 87 millimeters, this tower cooler will fit into almost any PC configuration. Pure Rock 2 is available with a brushed aluminum finish in a black appearance with electrophoretic black coating.

- Features

  • A high 150W TDP cooling efficiency
  • Light Wings 120mm PWM high-speed for vibrant unique look thanks to ARGB LEDs
  • Airflow-optimized fan blades for high pressure and low noise-generating turbulences
  • 4 high-performance 6mm heat pipes with HDT technology
  • Asymmetrical construction avoids blocking memory slots
  • Elegant black surface
  • 3-year manufacturer’s warranty

EXCELLENT COOLING EFFICIENCY

An exceptional price-to-performance ratio

Pure Rock 2 FX Black is aimed at the essential but illuminated category of PC systems. With 150W TDP it offers an excellent cooling capacity for multimedia and gaming systems, as well as show cases.

IMPRESSIVE LIGHTING

Lots of illumination possibilities

Light Wings 120mm PWM high-speed offers ARGB lighting with 18 LEDs. The ring at the front makes for a magnificent appearance from every angle.

QUIET OPERATION

Acclaimed be quiet! low noise level

A highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 24.4dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation.

HIGH-PERFORMANCE HEAT PIPES

Ensuring perfect heat transfer

Pure Rock 2 FX Black is equipped with four 6mm heat pipes that have aluminum caps. This is key to its great cooling performance, because they transport the heat to optimum locations on the cooling fins.

HIGHLY COMPATIBLE COMPACT DESIGN

Fits well into tight spaces

The asymmetrical construction does not block memory slots, saves space and makes Pure Rock 2 FX Black compatible with a full set of RAM modules. It is also very convenient to install, thanks to the fact you can mount it from above the motherboard.

ELEGANT BLACK SURFACE

Great visual appearance at first glance

The combination of vibrant ARGB illumination, an elegant black surface and the aluminum caps take care for Pure Rock 2 FX Black to perfectly integrate into any case.

- Specifications

Model
Pure Rock 2 FX
Overall dimensions without mounting material (L x W x H), (mm) 87 x 121 x 155
Total weight (kg) 0.685
TDP (W) 150
Socket compatibility AMD AM5 / AM4
Socket compatibility Intel 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) square ILM
Fan model, number Light Wings 120mm PWM high-speed
Decoupled fan mounting Yes
Overall noise level (dB(A)) @ 50/75/100% (rpm) 7.9 / 16.6 / 24.4

Heatsink specifications

Dimensions (L x W x H), (mm) 62 x 121 x 155
Number of fins 55
Fin material Aluminum
Base material Copper
CPU contact surface Heat pipe direct touch
Heatpipe number / Diameter (mm) 4 / 6
Color Black
Surface treatment Electrophoresis

Fan specifications

Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM /12V (rpm) 2000
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated Voltage (V) 12
Input current (A) 0.38
Input power (W) 4.56
Connector 4-pin PWM
Cable length (mm) 220
Lifespan (h / 25°C) 60,000

Accessories

Thermal grease Included
Mounting set Intel & AMD
Y-Cable -
User manual languages EN, DE, FR, JP, PL, ES, RU, TW, CN

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
