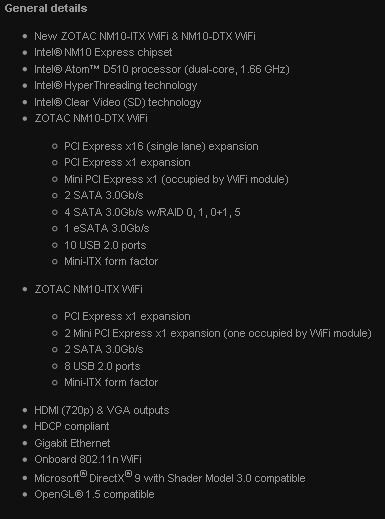

The new ZOTAC NM10 series delivers energy-efficiency from a new Intel Atom D510 dual-core processor and NM10 Express chipset with Graphics Media Accelerator 3150 integrated graphics. Paired with DDR2 memory, the ZOTAC NM10 series platforms have plenty of memory bandwidth and fast access latency for that extra performance punch for computing demands.

Intel Graphics Media Accelerator 3150 integrated graphics on the ZOTAC NM10 series deliver compatibility with Microsoft DirectX 9 with Shader Model 3.0 and OpenGL 1.5. Intel Clear Video technology enhances standard-definition content while HDMI and VGA outputs enable connectivity with the latest LCD monitors and televisions.

Exclusive to the ZOTAC NM10 series platform is a HDMI output capable of resolutions up to 1366x768 (720p), a feature no other Intel Atom with NM10 Express chipset platform will deliver. A VGA output compliments the HDMI output, for those still using analog display connections.

Expansion capabilities are plentiful on the ZOTAC NM10 series platforms with the mini-DTX form factor ZOTAC NM10-DTX WiFi packing PCI Express x16 (single lane) and PCI Express x1 slots, 2 SATA 3.0Gb/s, ZOTAC exclusive 4 SATA 3.0Gb/s with RAID 0, 1, 0+1 & 5, 1 eSATA 3.0Gb/s, 10 USB 2.0 ports, 5.1-channel high-definition audio, Gigabit Ethernet and 802.11n WiFi.

The ZOTAC NM10-ITX WiFi delivers the same performance and energy-efficiency in a smaller mini-ITX form factor with one PCI Express x1 slot, two SATA 3.0Gb/s ports, 8 USB 2.0 ports, 5.1-channel high-definition audio, Gigabit Ethernet and 802.11n WiFi.
